Features:

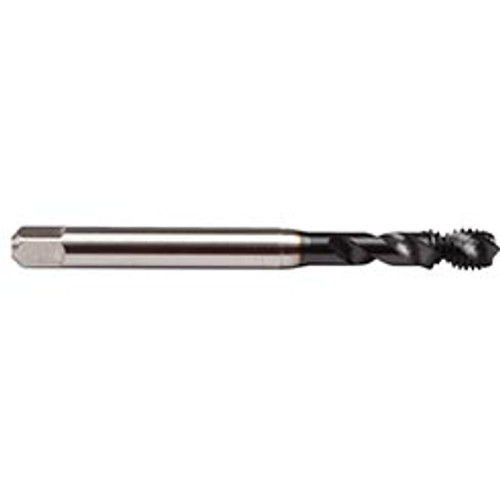

- The Enorm AL design is typically for blind hole threads in long chipping materials. The fast spiral flute (45 Degree) provides good chip removal from blind holes
- Longer tool life and more consistent thread quality
Product Specifications
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
5/16"-18
Thread Limit:
3B
Chamfer:
1.5 -2 P
Number of Flutes:
2
Finish/Coating:
GLT-8
Material:
HSSE
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
Helix Angle:
45°
Flute Direction:
Right Hand
Thread Standard:
STI-UNC
Thread Length (Inch):
25/32"
Thread Length (Decimal Inch):
0.7870"
Thread Length (mm):
19.99mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3810"
Shank Diameter (mm):
9.68mm
