Features:

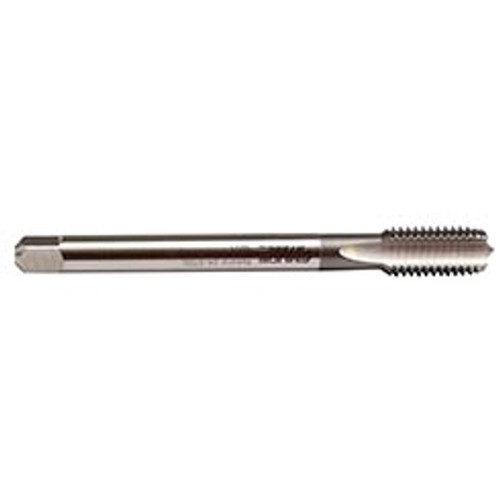

- Rekord A-Steel is a straight flute design best suited for short chipping steel material grades in through & blind hole applications
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 2 |
| Size | M 14 |
| Thread Limit | 6HX |
| Thread Standard | M |
| Applicable Material | Steel & Cast Aluminum |
| Application | Through and Blind Hole |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Type | Rekord A-Steel |
| Length Group | DIN Length |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 11 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 110 mm |
| Thread Length (mm) | 26 mm |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M14 X 2
Thread Limit:
6HX
Overall Length (Inch):
4-21/64"
Overall Length (Decimal Inch):
4.3308"
Overall Length (mm):
110mm
Chamfer:
2 -3 P
Material:
HSSE
Finish/Coating:
Bright
Thread Standard:
M
