Features:

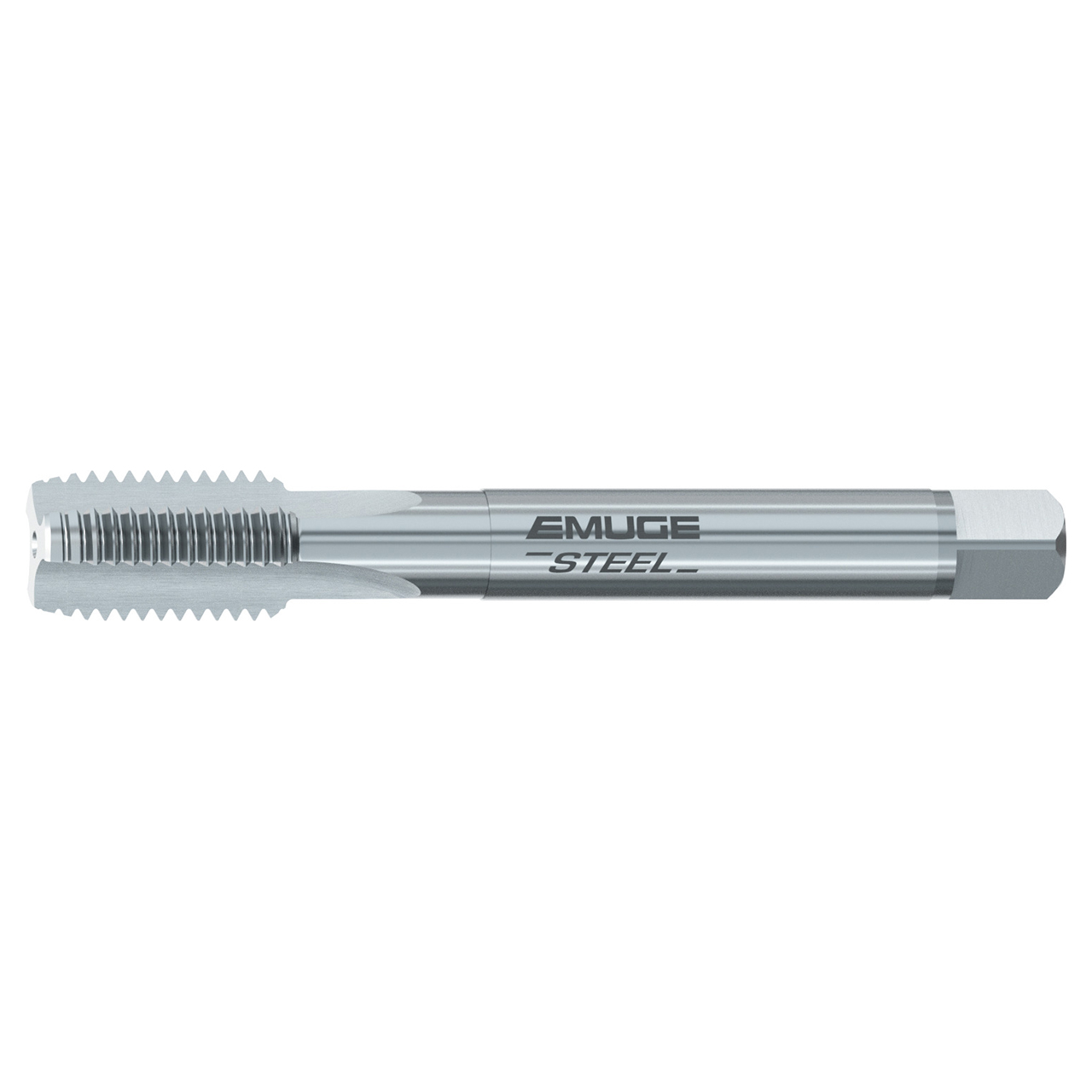

- Rekord A-Steel is a straight flute design for CNC applications
- HSSE tap, best suited for short chipping steel material grades
- Through and blind hole applications
- DIN/DIN standard dimensions for overall length and shank size
Product Specifications
| Manufacturer Part Number | C0101001.0330 |
| Thread Size | M 14x1.25 |
| Thread Diameter Size | M 14 |
| Thread Standard | MF |
| Thread Pitch (mm) | 1.25mm |
| Tap Square (mm) | 9.00mm |
| Thread Length (mm) | 22.00mm |
| Overall Length (mm) | 100.00mm |
| Thread Tolerance Class | 6HX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Cutting Edge Material | HSSE |
| Coating | Bright |
| Tool Type | Rekord A-Steel |
| Application | Straight Flute Taps |
| Product Type | Straight Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size (Inch):
M 14x1.25
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100.00mm
Finish/Coating (AL2 Plus, AlCrN, etc):
Bright
Thread Standard (BA, BSF, BSW, Metric, etc):
MF
interval quantity:
1
