Features:

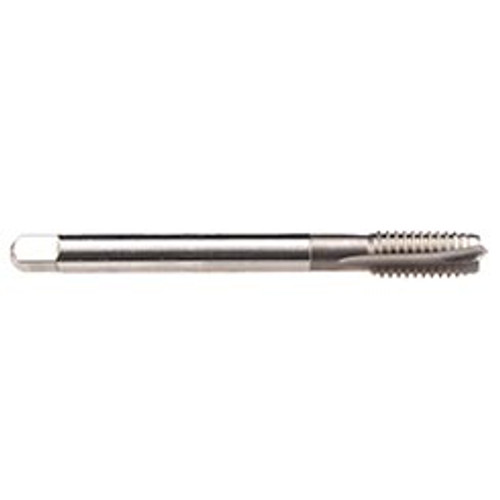

- Rekord B-Steel, straight flute, Whitworth pipe tap for through hole applications in long chipping materials
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 4 -5 P |
| Chamfer Form | B |
| Pitch | 14 |
| Size | 3/4" |
| Thread Standard | G (BSP) |
| Applicable Material | Steel Alloys & Long Chipping Materials |
| Application | Through & Blind Hole |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Type | Rekord B-Steel-L |
| Length Group | DIN Length |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 20 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 140 mm |
| Thread Length (mm) | 28 mm |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
3/4"-14
Thread Standard:
G (BSP)
Number of Flutes:
4
Overall Length (Inch):
5-33/64"
Overall Length (Decimal Inch):
5.5118"
Overall Length (mm):
140mm
Material:
HSSE
Finish/Coating:
Bright
