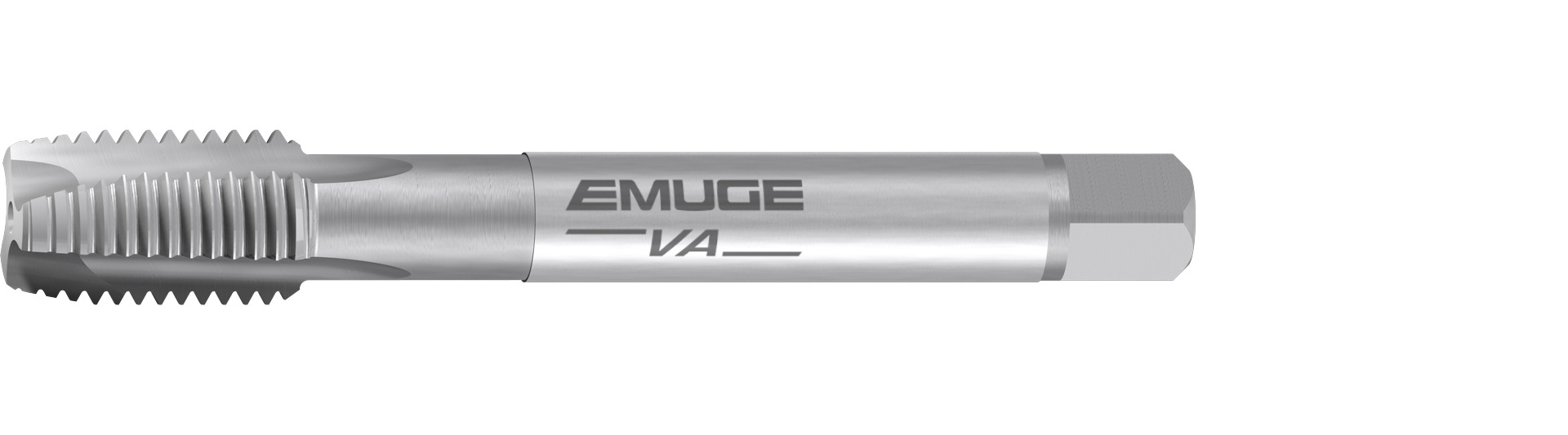

Product Specifications
| Chamfer | 4-5 P |
| Chamfer Form | B |
| Class | Oversize |
| Pitch | 3 |
| Size | M 24 x 3 |
| Thread Limit | 7G |
| Thread Standard | M |
| Coolant Fed | No |
| Coating/Finish | NT |
| Material | HSSE |
| Shank Diameter (mm) | 18 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 160 mm |
| Flute Direction | Straight |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Shank Diameter (mm):
18.00mm
Cutting Edge Material:
HSSE
Thread Length (mm):
34.00mm
Thread Size:
M 24 x 3
Thread Standard:
M
Flute Direction:
Straight
Finish/Coating:
NT
Tool Type:
Rekord B-VA
Application:
Spiral Point Taps
Overall Length (mm):
160.00mm
interval quantity:
1
