Features:

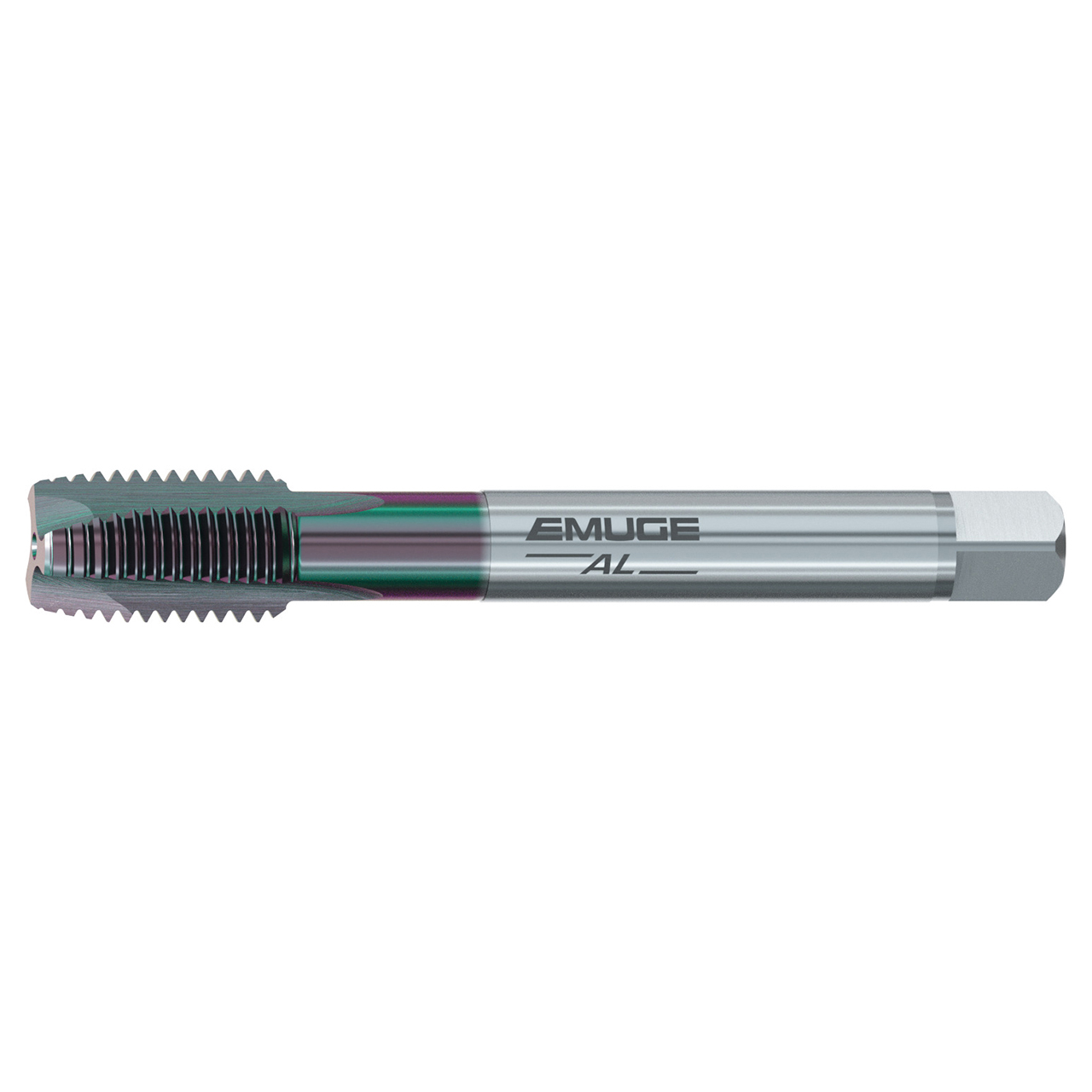

- Rekord B-AL tap is designed for wrought aluminum materials.
- The spiral point ensures optimum chip removal in the feed direction
- GLT-104 non-stick / low friction coating is well suited for threading aluminum alloys
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | C0203G00.0977 |
| Thread Size | M12x1.75 |
| Thread Diameter Size | M12 |
| Tap Square (Decimal Inch) | 0.322" |
| Thread Length (Decimal Inch) | 0.866" |
| Length Group | DIN Length |
| Number of Flutes | 2 |
| Dimensional Standard | DIN/DIN |
| Shank Tolerance | h9 |
| Flute Direction | Straight |
| Thread Standard | STI-M |
| Thread Tolerance Class | ISO 2/6H |
| Tap Chamfer | 4 -5 P |
| Tap Chamfer Form | B |
| Coolant Supply Property | External |
| Cutting Edge Material | HSSE |
| Coating | GLT-104 |
| Product Type | Spiral Point Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
M12x1.75
Thread Diameter Size:
M12
Thread Length (Inch):
84/97"
Thread Length (Decimal Inch):
0.8660"
Thread Length (mm):
22.00mm
Number of Flutes:
2
Coating:
GLT-104
