Features:

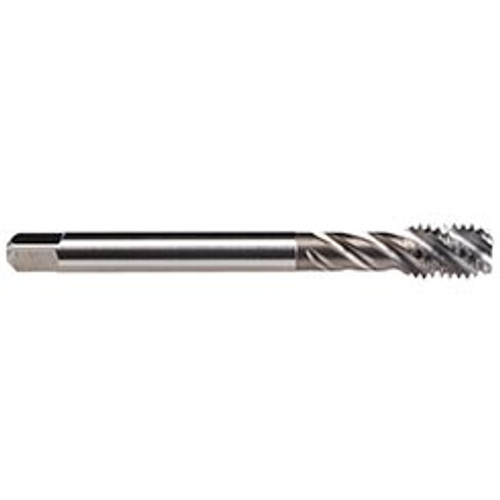

- The Enorm Z design is typically for blind hole threads in long chipping materials
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 2 |
| Size | M 16 |
| Thread Limit | 6H mod |
| Thread Standard | STI-M |
| Applicable Material | Long Chipping Materials |
| Application | Blind Hole |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Type | Enorm Z |
| Length Group | DIN Length |
| Number of Flutes | 5 |
| Helix Angle (Degrees) | 45 Degree |
| Shank Diameter (mm) | 14 mm |
| Dimension Standards | DIN/DIN |
| Shank Tolerance | h9 |
| Overall Length (mm) | 125 mm |
| Thread Length (mm) | 27 mm |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M16 X 2
Thread Limit:
6H mod
Chamfer:
2 -3 P
Number of Flutes:
5
Finish/Coating:
Bright
Material:
HSSE
Overall Length (Inch):
4-59/64"
Overall Length (Decimal Inch):
4.9212"
Overall Length (mm):
125mm
Helix Angle:
45 Degree
Flute Direction:
Right Hand
Thread Standard:
STI-M
Thread Length (Inch):
1-1/16"
Thread Length (Decimal Inch):
1.0629"
Thread Length (mm):
27mm
Shank Diameter (Inch):
35/64"
Shank Diameter (Decimal Inch):
0.5511"
Shank Diameter (mm):
14mm
