Features:

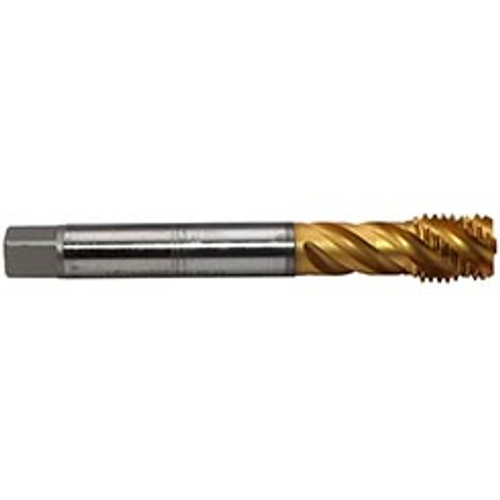

- The Enorm Z/E design is typically for blind hole threads in long chipping materials The fast spiral flute (45 Degree) provides good chip removal from blind holes
- Longer tool life and more consistent thread quality
Product Specifications
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
M20 X 2.5
Thread Limit:
ISO 2/6H
Number of Flutes:
4
Chamfer:
1.5 -2 P
Material:
HSSE
Finish/Coating:
TIN
Flute Direction:
Right Hand
Overall Length (Inch):
5-33/64"
Overall Length (Decimal Inch):
5.5119"
Overall Length (mm):
140mm
