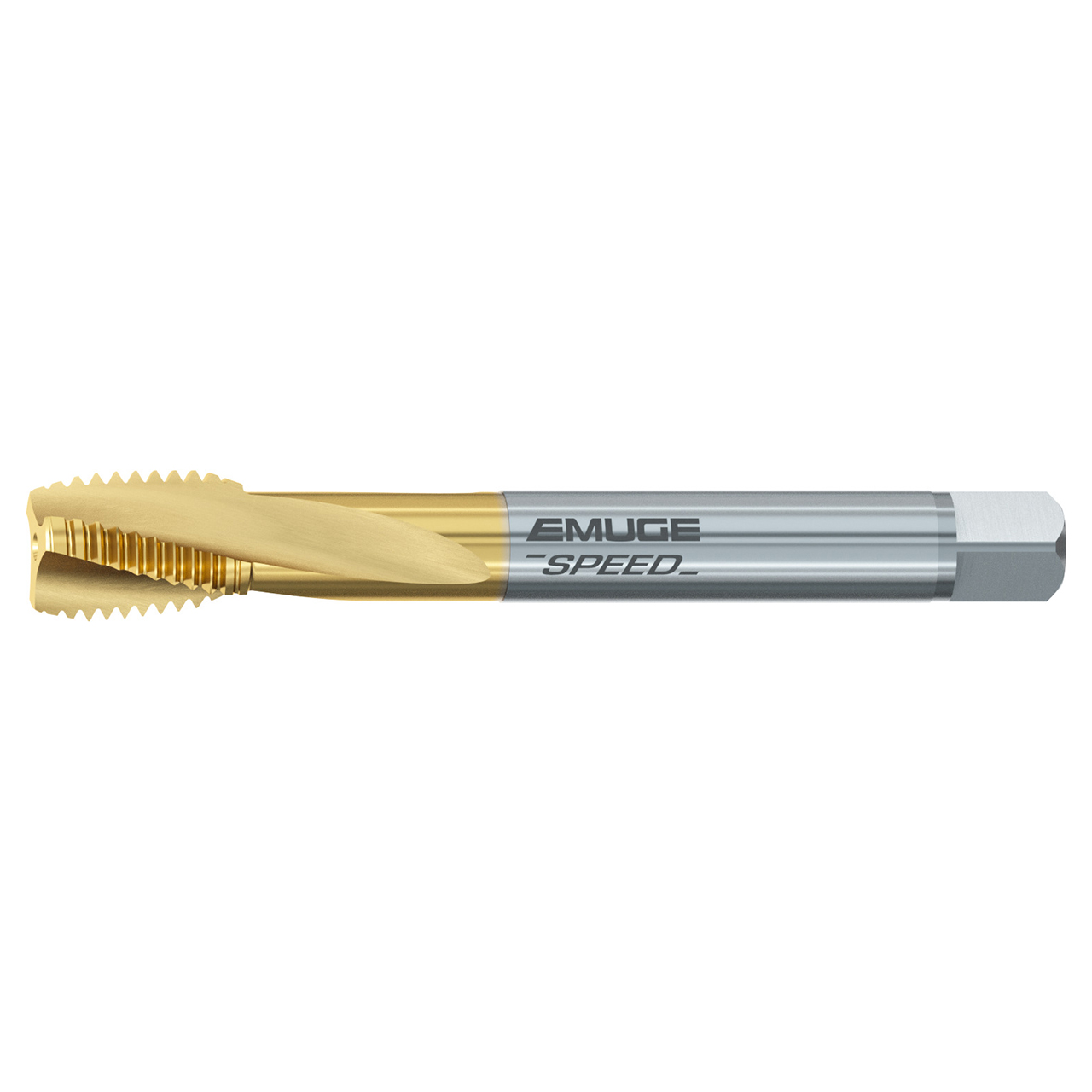

Features:
- Speed taps are able to operate at higher cutting speeds than conventional designs Rekord D style taps have a slow spiral construction and are best suited for blind hole applications
- Slow spiral construction and are best suited for blind hole applications
- TIN coated for additional heat and wear resistance
- DIN / ANSI taps manufactured to DIN length for extra reach and ANSI shanks
Product Specifications
| Manufacturer Part Number | CU263701.5048 |
| Thread Size | 9/16"-18" |
| Thread Diameter Size (Inch) | 9/16" |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 18 TPI |
| Tap Square (Decimal Inch) | 0.322" |
| Thread Length (Decimal Inch) | 0.591" |
| Overall Length (Decimal Inch) | 3.937" |
| Shank Machine Side Connection Diameter (Decimal Inch) | 0.429" |
| Thread Tolerance Class | 2BX |
| Tap Chamfer | 2-3 P |
| Tap Chamfer Form | C |
| Dimensional Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Flute Direction | Right Hand |
| Group Length | DIN Length |
| Coolant Supply Property | External |
| Coolant Fed | No |
| Number of Flute | 3 |
| Flute Helix Angle (Degree) | 15 Degree |
| Cutting Edge Material | HSSE |
| Coating | TIN |
| Tool Type | Rekord D - Speed |
| Application | Spiral Flute Taps |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Thread Size:
9/16-18"
Number of Flutes:
3
Finish/Coating:
TIN
Flute Direction:
Right Hand
Threads per Inch (TPI):
18
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
99.99mm
