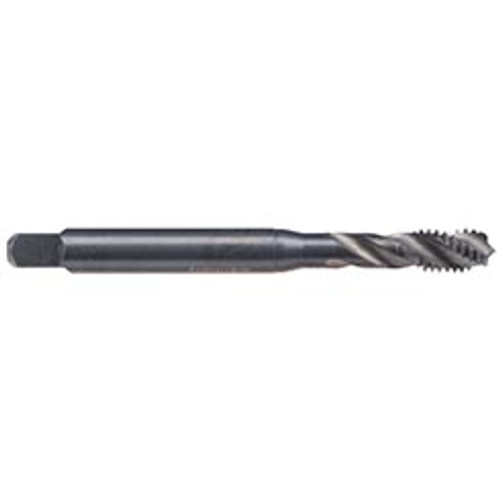

Emuge CU503210.5047 | 1/2-20 -Tap-EnorMVA-Blind Hole-3B

$80.68
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
1/2"-20
Thread Limit:
3B
Number of Flutes:
4
Chamfer:
2 -3 P
Material:
HSSE
Finish/Coating:
NE2
Flute Direction:
Right Hand
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
SKU:
15043518
Weight:
0.11 LBS
Shipping:
Free Shipping

Features:

  • The Enorm VA design is typically for blind hole threads in long chipping materials. The fast spiral flute (35 Degree) provides good chip removal from blind holes
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer2 -3 P
Chamfer FormC
Pitch20
Size1/2"
Thread Limit3B
Thread StandardUNF
Applicable MaterialAlloyed Steel & Long Chipping Materials
ApplicationBlind Hole
Coolant FedNo
Coating/FinishNE2
MaterialHSSE
TypeEnorm VA
Length GroupDIN Length
Number of Flutes4
Helix Angle (Degrees)35 Degree
Shank Diameter (mm)0.367"
Dimension StandardsDIN/ANSI
Shank Toleranceh9
Overall Length (mm)3.937"
Thread Length (mm)0.866"
Flute DirectionRight Hand
