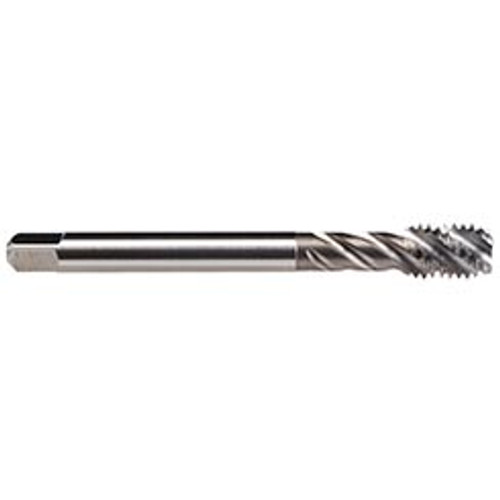

Emuge CU513500.5049 | 5/8-18 UNF- Tap - EnorMZ/E - ForME

$144.22
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
5/8"-18
Thread Limit:
2B
Number of Flutes:
5
Chamfer:
1.5 -2 P
Material:
HSSE
Finish/Coating:
Bright
Flute Direction:
Right Hand
Overall Length (Inch):
3-15/16"
Overall Length (Decimal Inch):
3.9370"
Overall Length (mm):
100mm
SKU:
15039958
Weight:
0.19 LBS
Shipping:
Free Shipping

Features:

  • The Enorm Z/E design is typically for blind hole threads in long chipping materials
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer1.5 -2 P
Chamfer FormE
Pitch18
Size5/8"
Thread Limit2B
Thread StandardUNF
Applicable MaterialLong Chipping Materials
ApplicationBlind Hole
Coolant FedNo
Coating/FinishBright
MaterialHSSE
TypeEnorm Z/E
Length GroupDIN Length
Number of Flutes5
Helix Angle (Degrees)45 Degree
Shank Diameter (mm)0.480"
Dimension StandardsDIN/ANSI
Shank Toleranceh9
Overall Length (mm)3.937"
Thread Length (mm)0.866"
Flute DirectionRight Hand
