Features:

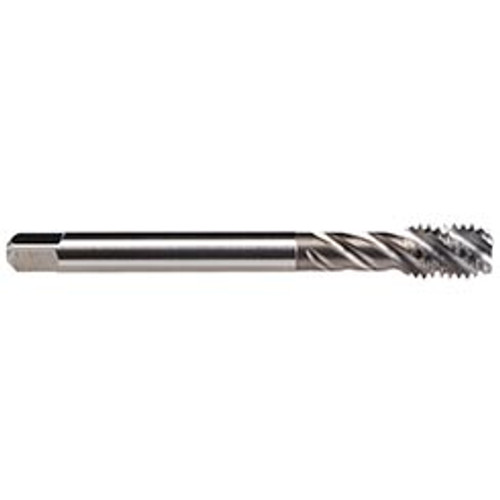

- The Enorm Z/E design is typically for blind hole threads in long chipping materials
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 1.5 -2 P |
| Chamfer Form | E |
| Pitch | 11 |
| Size | 5/8" |
| Thread Limit | 3B |
| Thread Standard | STI-UNC |
| Applicable Material | Long Chipping Materials |
| Application | Blind Hole |
| Coolant Fed | No |
| Coating/Finish | Bright |
| Material | HSSE |
| Type | Enorm Z/E |
| Length Group | DIN Length |
| Number of Flutes | 5 |
| Helix Angle (Degrees) | 45 Degree |
| Shank Diameter (mm) | 0.590" |
| Dimension Standards | DIN/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 4.921" |
| Thread Length (mm) | 1.181" |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
5/8"-11
Thread Limit:
3B
Chamfer:
1.5 -2 P
Number of Flutes:
5
Finish/Coating:
Bright
Material:
HSSE
Overall Length (Inch):
4-59/64"
Overall Length (Decimal Inch):
4.9210"
Overall Length (mm):
124.99mm
Helix Angle:
45 Degree
Flute Direction:
Right Hand
Thread Standard:
STI-UNC
Thread Length (Inch):
1-3/16"
Thread Length (Decimal Inch):
1.1810"
Thread Length (mm):
30mm
Shank Diameter (Inch):
19/32"
Shank Diameter (Decimal Inch):
0.5900"
Shank Diameter (mm):
14.99mm
interval quantity:
1
