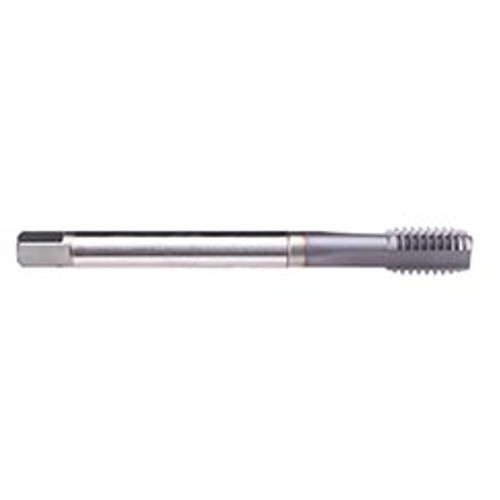

Emuge CW169401.5014 | 9/16-12 UNC- Rekord - Speed Tap - Coolant

$171.62
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
9/16"-12
Thread Limit:
2BX
Overall Length (Inch):
4-21/64"
Overall Length (Decimal Inch):
4.3310"
Overall Length (mm):
110.01mm
Number of Flutes:
4
Chamfer:
1.5 -2 P
Material:
HSSE
Finish/Coating:
TICN
Thread Standard:
UNC
SKU:
15043085
Weight:
0.13 LBS
Shipping:
Free Shipping

Features:

  • Speed taps are able to operate at higher cutting speeds than conventional designs. Rekord A-Speed is a straight flute design for high speed tapping in short chipping materials in through & blind hole applications
  • Longer tool life and more consistent thread quality

Product Specifications
Chamfer1.5 -2 P
Chamfer FormE
Pitch12
Size9/16"
Thread Limit2BX
Thread StandardUNC
Applicable MaterialShort Chipping Materials
ApplicationThrough and Blind Hole
Coolant FedAxial
Coating/FinishTICN
MaterialHSSE
TypeRekord A-Speed
Length GroupDIN Length
Number of Flutes4
Helix Angle (Degrees)0 Degree
Shank Diameter (mm)0.429"
Dimension StandardsDIN/ANSI
Shank Toleranceh9
Overall Length (mm)4.331"
Thread Length (mm)1.024"
Flute DirectionStraight
