Features:

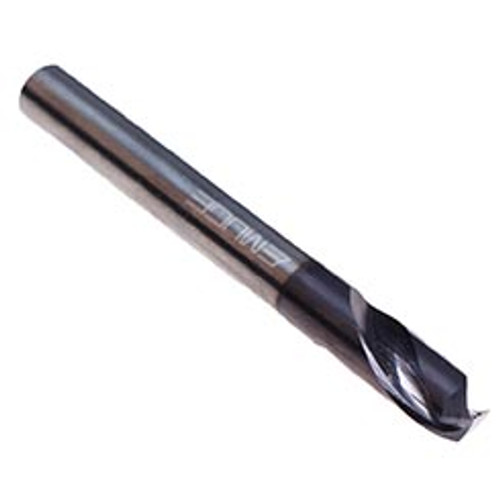

- Pre-drill carbide 142 Degree NC spot drill. Web thinned point grind
- Creates a 142 Degree starting hole. Point geometry resists breakage in most materials
Product Specifications
| Decimal Size (Inch) | 0.250" |
| Point Angle | 142 Degree |
| Size | 1/4" |
| Applicable Material | Universal Materials |
| Application | Spot Drill |
| Type | NC Spot Drill |
| Coolant Fed | No |
| Finish/Coating | TIALN |
| Material | Carbide |
| Flutes | 2 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 1/4" |
| Shank Tolerance | h6 |
| Shank Style | HE |
| Overall Length (mm) | 2.5" |
| Flute Spiral Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Body Diameter (Inch):
1/4"
Body Diameter (Decimal Inch):
0.2500"
Body Diameter (mm):
6.35mm
Drill Point Angle:
142Ëš
Material:
Carbide
Finish/Coating:
TIALN
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5"
Overall Length (mm):
63.5mm
