Features:

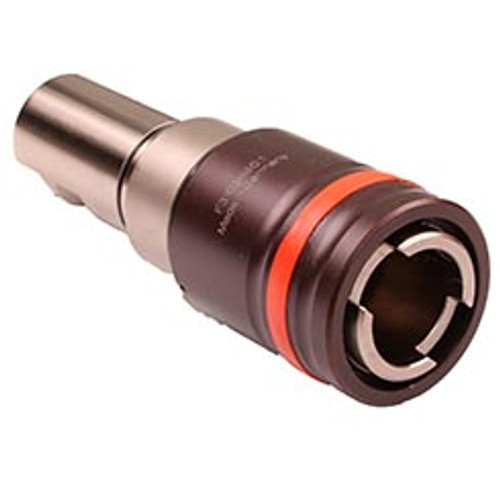

- KSN tension compression tool holder with front release
- Quick-Change tap holder for fast tap replacement
Product Specifications
| Size | #10-1" (M4.5-M24) Taps |
| Application | Tapping Tool Holder |
| Type | Tension / Compression |
| Shank Diameter (mm) | 1-1/4" |
| Coolant Fed | Axial |
| Shank Tolerance | ASME B94.19 |
| Shank Style | Weldon |
| Projection Length (mm) | 3.85" |
| Nose Diameter (mm) | 2.20" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Projection (Inch):
3-27/32"
Projection (mm):
97.79mm
Projection (Decimal Inch):
3.8500"
Nose Diameter (Decimal Inch):
2.2000"
