Features:

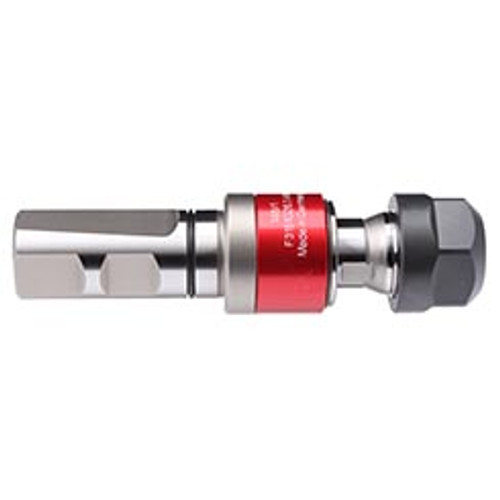

- Softsynchro collet holder with patented length compensation feature
- Increases tool life and thread quality
Product Specifications
| Size | #8-3/4" (M4-M20) Taps |
| Application | Tapping Tool Holder |
| Type | Tension / Compression |
| Shank Diameter (mm) | 1" |
| Coolant Fed | Axial |
| Shank Tolerance | ASME B94.19 |
| Shank Style | Weldon |
| Projection Length (mm) | 3.44" |
| Nose Diameter (mm) | 1.97" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Projection (Inch):
3-7/16"
Projection (mm):
87.38mm
Projection (Decimal Inch):
3.4400"
Nose Diameter (Decimal Inch):
1.9700"
interval quantity:
1
