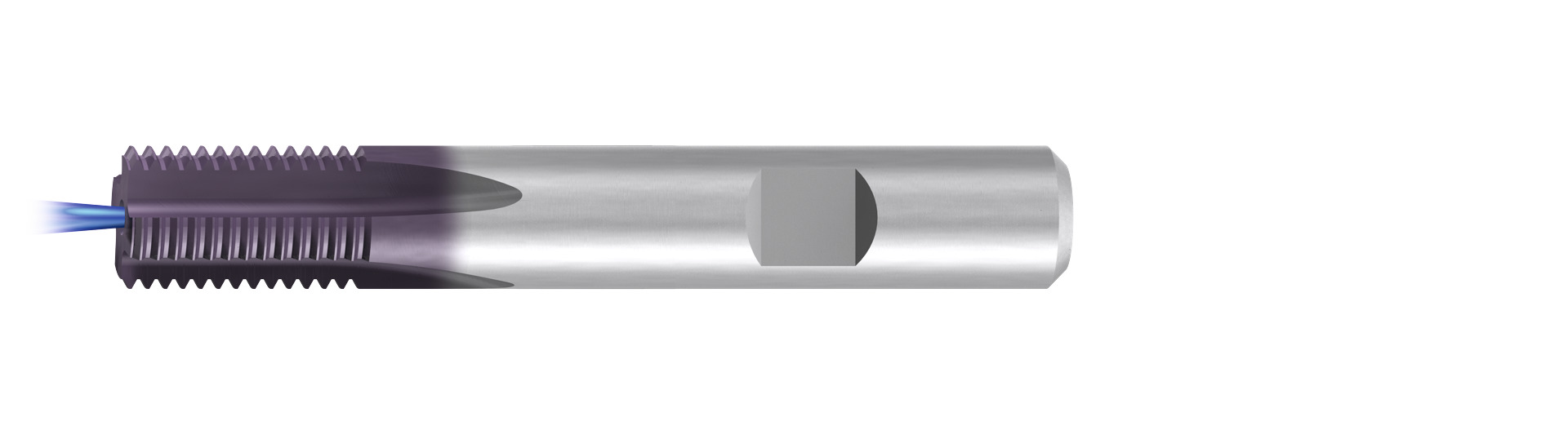

Features:
- Thread mills with standard thread profile (for different thread sizes but for one pitch only)
Product Specifications
| Cutter Diameter (mm) | 9.9 mm |
| Pitch | 1 |
| Size | 10 |
| Thread Standard | M/MF |
| Applicable Material | Steel, Cast Iron, Aluminum,Titanium |
| Application | Full Profile |
| Type | GF |
| Coolant Fed | Axial |
| Coating/Finish | TiCN |
| Material | Carbide |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 10 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 70 mm |
| Thread Length (mm) | 16.5 |
| Flute Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
9.90mm
Shank Diameter (mm):
10.00mm
Cutting Edge Material:
Carbide
Thread Length (mm):
16.50mm
Flute Length (mm):
16.50mm
Thread Size:
?M10 x 1
Number of Flutes:
4
Flute Direction:
Right Hand
Finish/Coating:
TiCN
Tool Type:
VARIO Z - External
Application:
Thread Milling
Overall Length (mm):
70.00mm
interval quantity:
1
