Features:

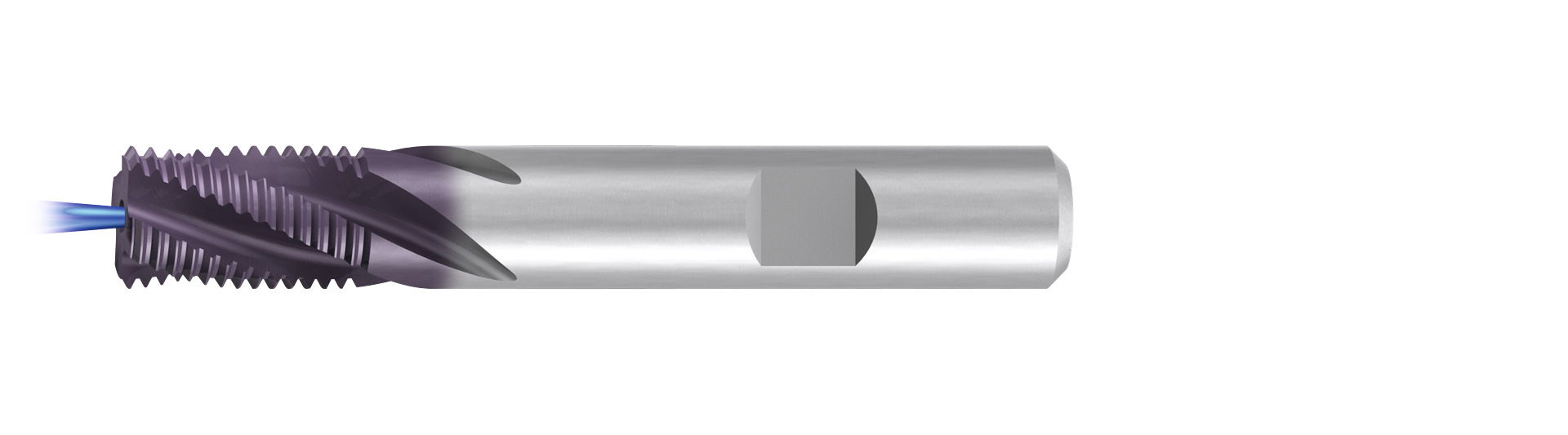

- Thread mills with standard thread profile (for different thread sizes but for one pitch only)
Product Specifications
| Cutter Diameter (mm) | 19.9 mm |
| Pitch | 1 |
| Size | M 27 |
| Thread Standard | M/MF |
| Applicable Material | Steel, Cast Iron, Aluminum,Titanium |
| Application | Full Profile |
| Type | GF |
| Coolant Fed | Axial |
| Coating/Finish | TiCN |
| Material | Carbide |
| Number of Flutes | 5 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 20 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 105 mm |
| Thread Length (mm) | 32.437 |
| Flute Direction | Right Hand, Left Hand |
