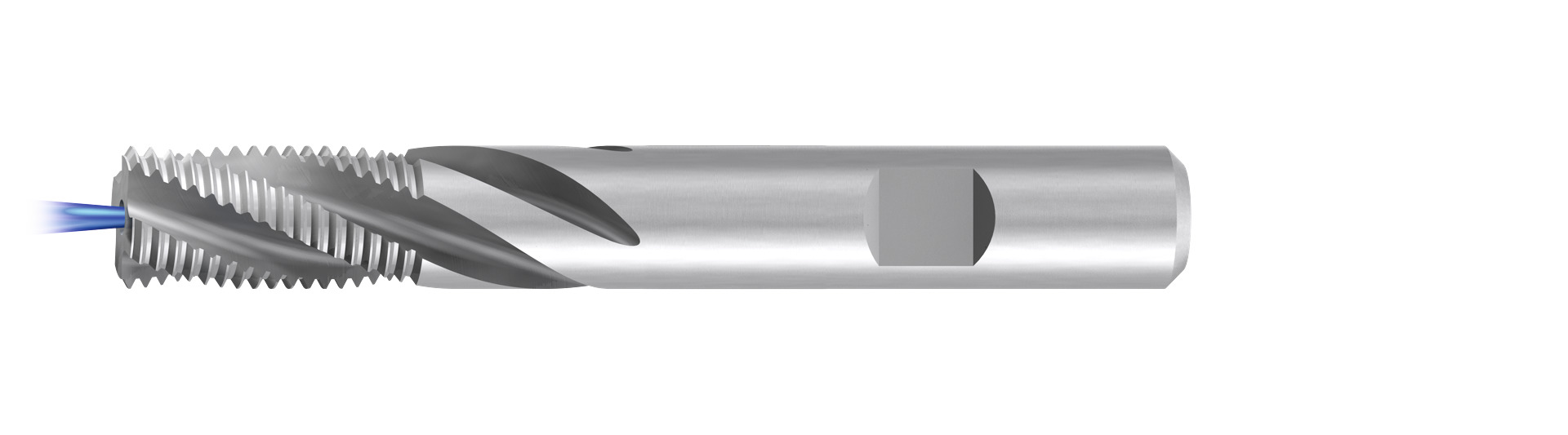

Features:
- For production of internal threads
- Tool for different thread sizes and pitches with correct thread profile
Product Specifications
| Cutter Diameter (mm) | 11.9 mm |
| Pitch | 16 |
| Size | 11/16" min |
| Thread Standard | UN |
| Applicable Material | Steel, Cast Iron, Aluminum, Titanium |
| Application | Full Profile |
| Type | SHUR-THREAD |
| Length Group | Long |
| Coolant Fed | Axial |
| Coating/Finish | Bright |
| Material | Carbide |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 12 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 80 mm |
| Thread Length (mm) | 21.3 mm |
| Flute Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
11.90mm
Shank Diameter (mm):
12.00mm
Cutting Edge Material:
Carbide
Thread Length (mm):
21.30mm
Thread Standard:
UN
Threads per Inch (TPI):
16 TPI
Number of Flutes:
4
Flute Direction:
Right Hand
Finish/Coating:
Bright
Tool Type:
VARIO Z
Application:
Thread Milling
Overall Length (mm):
80.00mm
