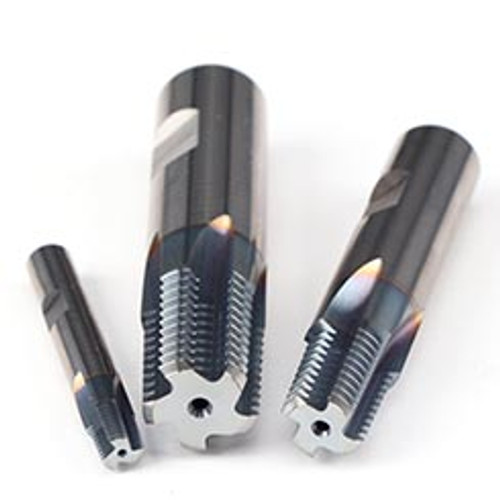

Features:
- For production of internal threads
- Tool for different thread sizes and pitches with correct thread profile
Product Specifications
| Cutter Diameter (mm) | 11.15 mm |
| Pitch | 19 |
| Size | Rc 3/8 |
| Thread Standard | BSPT |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Full Profile |
| Type | GF-KEG - Pipe Threads |
| Coolant Fed | Axial |
| Finish/Coating | TICN |
| Material | Carbide |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 12 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 75 mm |
| Flute Length (mm) | 13.95 mm |
| Flute Spiral Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
11.15mm
Shank Diameter (mm):
12.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
13.95mm
Thread Size:
Rc 3/8-19
Threads per Inch (TPI):
19 TPI
Number of Flutes:
4
Flute Direction:
Right Hand
Finish/Coating:
TiCN
Tool Type:
SHUR-THREAD
Application:
Thread Milling
Overall Length (mm):
75.00mm
