Features:

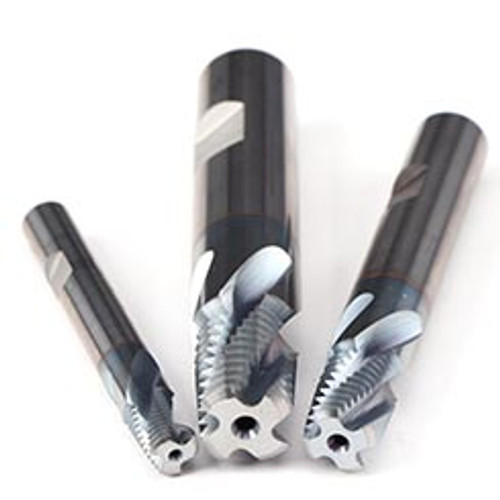

- Innovative high performance thread mill for NPT threads
- Extended milling section with 14 cutting teeth to produce API-LP threads
Product Specifications
| Cutter Diameter (mm) | 11.15 mm |
| Pitch | 18 |
| Size | 3/8" |
| Thread Standard | NPT (API-LP) |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Full Profile |
| Type | GF-KEG - Pipe Threads |
| Length Group | Long |
| Coolant Fed | Axial |
| Finish/Coating | TICN |
| Material | Carbide |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 15 Degree |
| Shank Diameter (mm) | 12 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 45 mm |
| Flute Length (mm) | 11.15 mm |
| Flute Spiral Direction | Right Hand, Left Hand |
