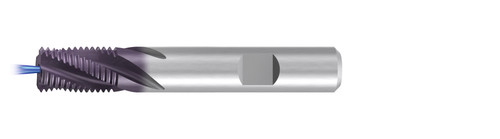

Emuge GF195356.9679 | 1 - 11.5 NPT-Thread Mill-GF Sp Flt-R15-Radial Coolant-TICN

$1,231.47
Ships:
From Manufacturer
Ships:
From Manufacturer
SKU:
15046108
Weight:
0.49 LBS
Shipping:
Free Shipping

Features:

  • Innovative high performance thread mill for NPT threads
  • Extended milling section with 14 cutting teeth to produce API-LP threads

Product Specifications
Cutter Diameter (mm)0.772"
Pitch11-1/2"
Size1" or 2 "
Thread StandardNPT (API-LP)
Applicable MaterialSteel, Stainless Steel, Cast Iron, Aluminum, Titanium
ApplicationFull Profile
TypeGF-KEG-Pipe Threads
Length GroupLong
Coolant FedRadial
Coating/FinishTICN
MaterialCarbide
Number of Flutes5
Helix Angle (Degrees)15 Degree
Shank Diameter (mm)20 mm
Shank Toleranceh6
Shank StyleHB
Overall Length (mm)3.740"
Flute Length (mm)1.259"
Flute DirectionRight Hand, Left Hand
