Features:

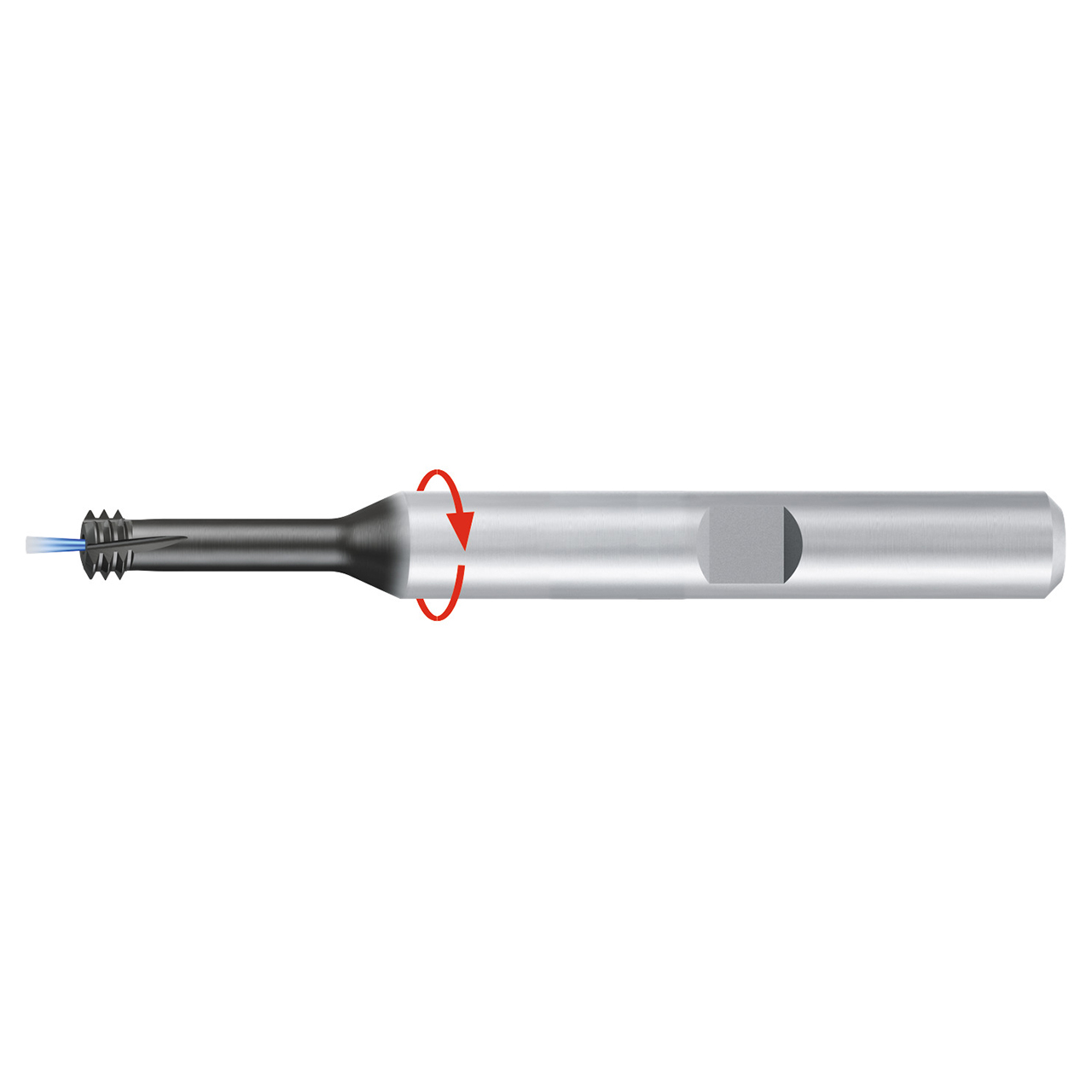

- Solid carbide circular thread mill with left hand flute design
- Premium sub-micro grain carbide tool for aerospace materials. TIALN-T46 coating for added heat and wear resistance
Product Specifications
| Cutter Diameter (mm) | 8.2 mm |
| Pitch | 1.5 |
| Size | M 10 |
| Thread Standard | M/MF |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Three Tooth Profile |
| Type | ZGF-S-Cut |
| Length Group | 2 x D |
| Coolant Fed | Axial |
| Coating/Finish | TIALN-T14 |
| Material | Carbide |
| Number of Flutes | 5 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 10 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 70 mm |
| Flute Length (mm) | 20.7 mm |
| Flute Direction | Left Hand |
