Features:

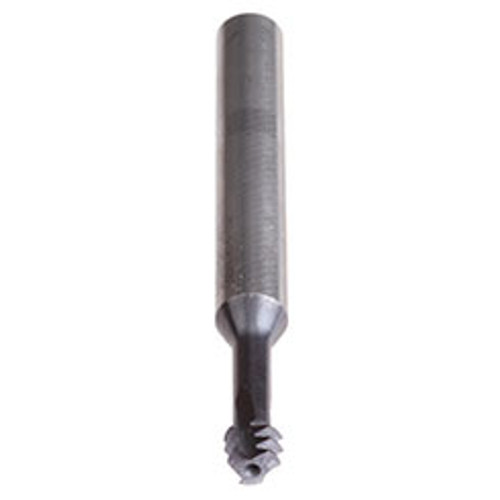

- Solid carbide circular thread mill with left hand flute design
- Premium sub-micro grain carbide tool for aerospace materials TIALN-T46 coating for added heat and wear resistance
Product Specifications
| Cutter Diameter (Inch) | 0.067" |
| Pitch | 56 |
| Size | 2 |
| Thread Standard | UNC |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Three Tooth Profile |
| Type | ZGF-S-Cut |
| Length Group | 2 x D |
| Coolant Fed | Axial |
| Finish/Coating | TIALN-T14 |
| Material | Carbide |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 3 mm |
| Dimension Standards | ASME B1.1 |
| Shank Tolerance | h6 |
| Shank Style | HA |
| Overall Length (Inch) | 1.535" |
| Flute Length (Inch) | 0.181" |
| Flute Spiral Direction | Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.0670"
Shank Diameter (mm):
3.00mm
Cutting Edge Material:
Carbide
Flute Length (Decimal Inch):
0.1810"
Thread Size:
#2-56
Thread Standard:
UNC
Threads per Inch (TPI):
56 TPI
Number of Flutes:
3
Flute Direction:
Left Hand
Finish/Coating:
TiAlN-T14
Tool Type:
THREADS-ALL / AERO
Application:
Thread Milling
Overall Length (Decimal Inch):
1.5350"
