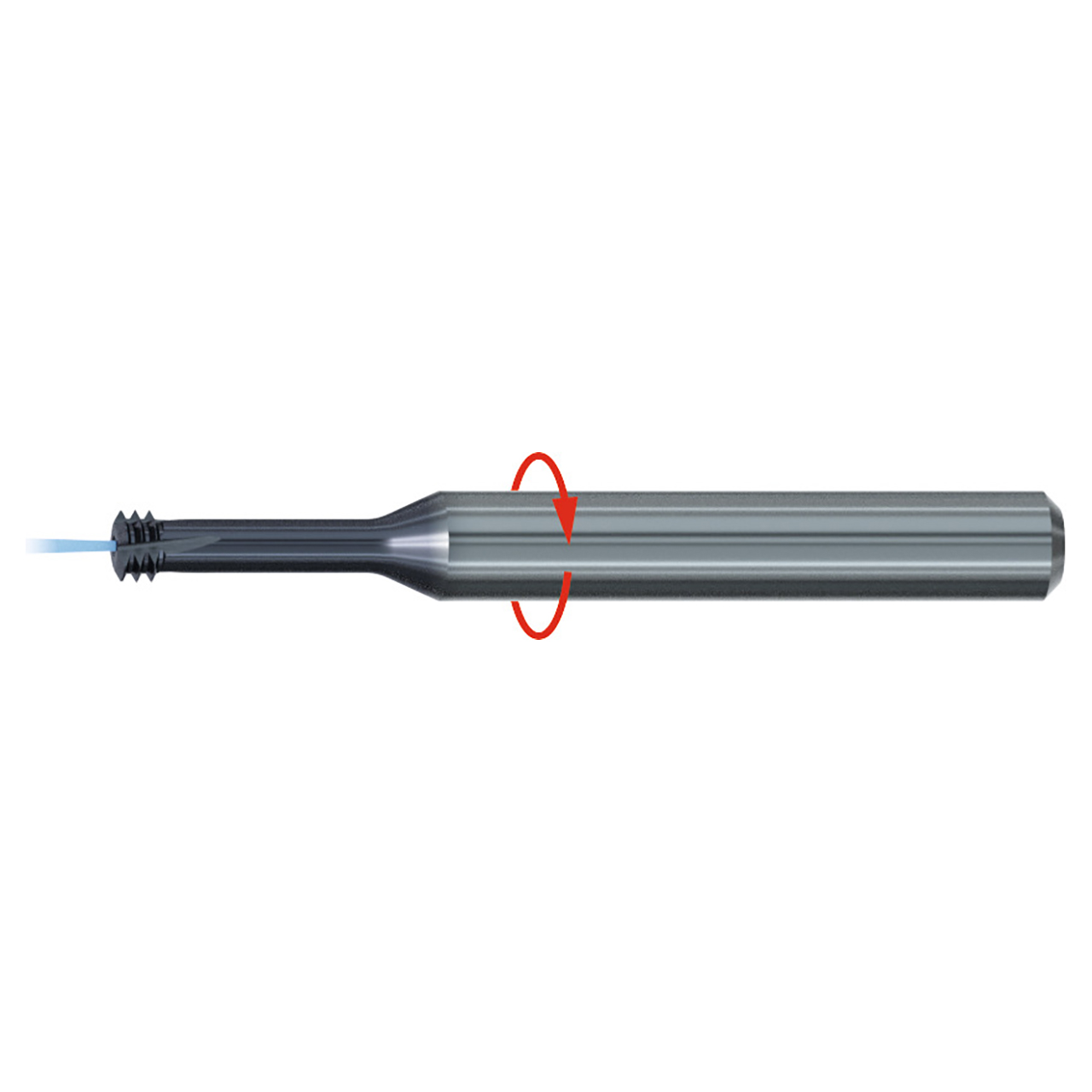

Features:
- Solid carbide circular thread mill with left hand flute design for additional stability
- Three tooth design with roughing and finishing in a single profile
- Full bottoming threads to within 1 pitch
- For aerospace and exotic materials
Product Specifications
| Manufacturer Part Number | GF26A729.5041 |
| Cutting Diameter (Decimal Inch) | 0.154" |
| Thread Size | #10-32 |
| Thread Diameter Size | #10 |
| Thread Standard | UNF |
| Thread per Inch (TPI) | 32 TPI |
| Overall Length (Decimal Inch) | 1.653" |
| Flute Length (Decimal Inch) | 0.392" |
| Dimensional Standards | ASME B1.1 |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Left Hand |
| Group Length | 2xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 4 |
| Cutting Edge Material | Carbide |
| Coating | TIALN-T14 |
| Tool Type | THREADS-ALL / AERO |
| Application | Thread Milling |
| Product Type | Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.1540"
Shank Diameter (mm):
4.00mm
Cutting Edge Material:
Carbide
Flute Length (Decimal Inch):
0.3920"
Thread Size:
#10-32
Thread Standard:
UNF
Threads per Inch (TPI):
32 TPI
Number of Flutes:
4
Flute Direction:
Left Hand
Finish/Coating:
TiAlN-T14
Tool Type:
THREADS-ALL / AERO
Application:
Thread Milling
Overall Length (Decimal Inch):
1.6530"
