Features:

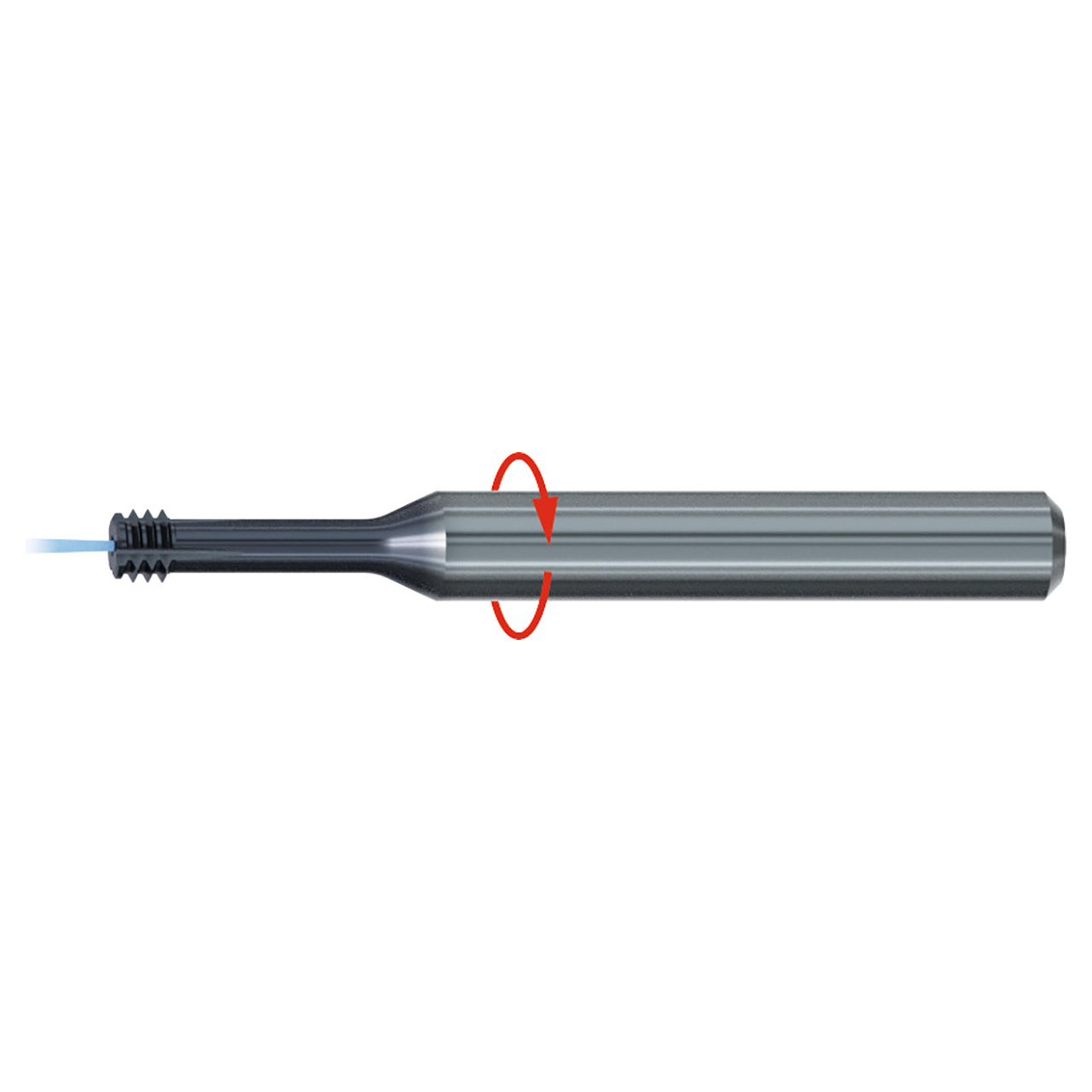

- Solid carbide circular thread mill with 4 rows of cutting teeth
- Flute design for roughing and finishing in a single profile
- TIALN-T46 coating for additional heat and wear resistance
- For high tensile strength materials, 44 to 66 HRC
Product Specifications
| Manufacturer Part Number | GF283729.0080 |
| Cutting Diameter (mm) | 6.50mm |
| Thread Size | M 8 x1.25 |
| Thread Diameter Size | M 8 |
| Thread Standard | M |
| Thread Pitch (mm) | 1.25mm |
| Overall Length (mm) | 60.00mm |
| Flute Length (mm) | 17.90mm |
| Dimensional Standards | DIN 13 |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Cylindrical - HA |
| Shank Standard | DIN 6535 |
| Flute Direction | Left Hand |
| Group Length | 2xD |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 4 |
| Flute Helix Angle (Degree) | 10 Degree |
| Cutting Edge Material | Carbide |
| Coating | TIALN-T46 |
| Tool Type | THREADS-ALL / MAX |
| Application | Thread Milling |
| Product Type | Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
6.50mm
Shank Diameter (mm):
8.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
17.90mm
Thread Size:
M 8 x 1.25
Thread Standard:
M
Number of Flutes:
4
Flute Direction:
Left Hand
Finish/Coating:
TiAlN-T46
Tool Type:
THREADS-ALL / MAX
Application:
Thread Milling
Overall Length (mm):
60.00mm
