Features:

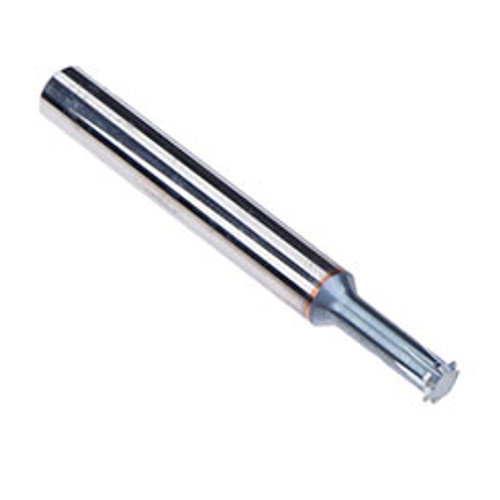

- Solid carbide circular thread mill with corrected thread profile
- For machining threads down to M1 Able to thread multiple trhead sizes and different pitches TICN coating for added wear resistance
Product Specifications
| Cutter Diameter (mm) | 4.04 mm |
| Pitch | 0.8 |
| Size | M 5 |
| Thread Standard | M |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Single Plane |
| Type | ZGF- THREADS-ALL |
| Length Group | 2 x D |
| Coolant Fed | No |
| Finish/Coating | TICN |
| Material | Carbide |
| Number of Flutes | 7 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (mm) | 4 mm |
| Dimension Standards | DIN 13 |
| Shank Tolerance | h6 |
| Shank Style | HA |
| Overall Length (mm) | 44 mm |
| Flute Length (mm) | 12.35 mm |
| Flute Spiral Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
4.04mm
Shank Diameter (mm):
4.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
12.35mm
Thread Size:
M 5 x 0.8
Thread Standard:
M
Number of Flutes:
7
Flute Direction:
Right Hand
Finish/Coating:
TiCN
Tool Type:
THREADS-ALL
Application:
Thread Milling
Overall Length (mm):
44.00mm
