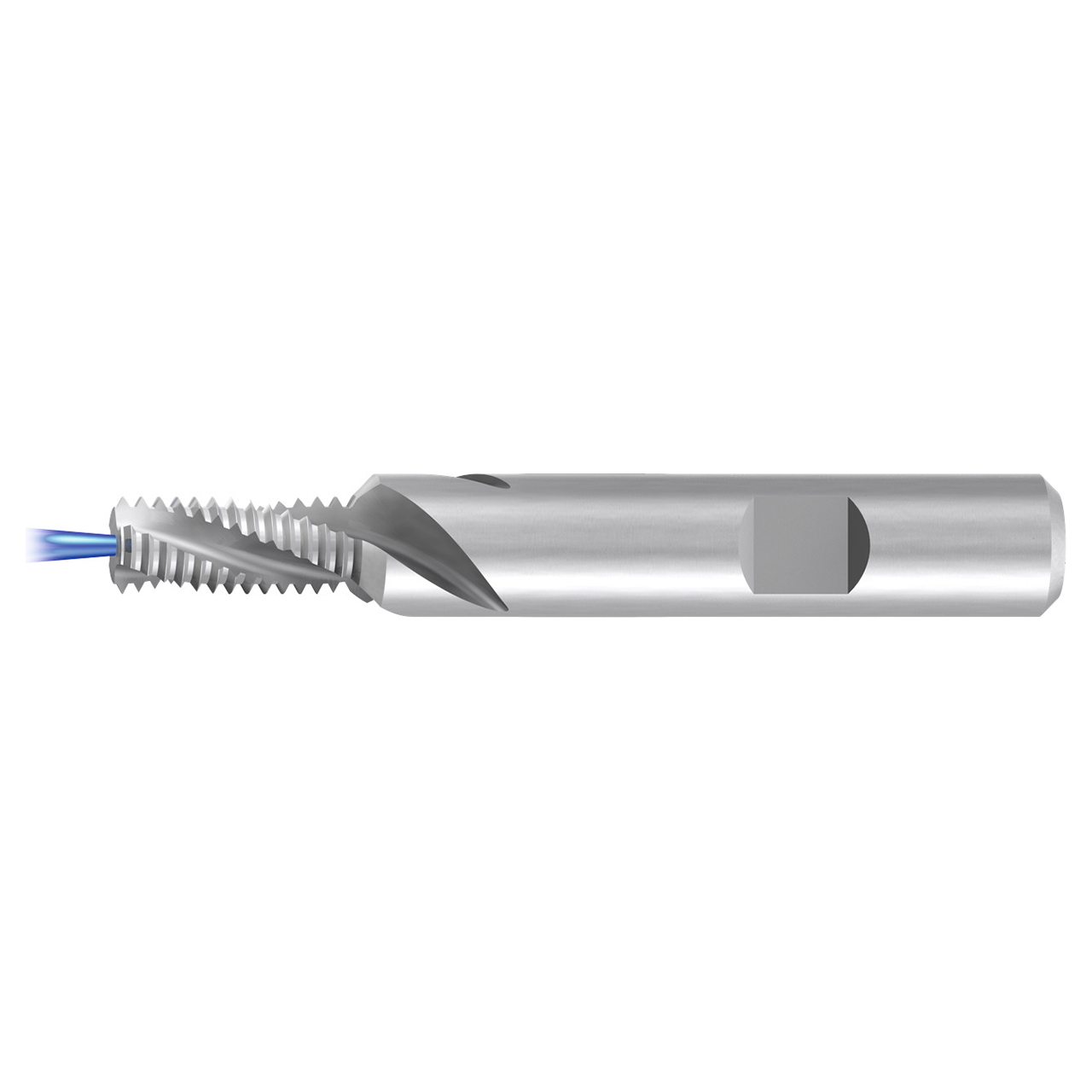

Features:
- Combination countersink & thread mill. Coolant fed design
- Combine two operations into one tool. Coolant fed for efficient chip evacuation
Product Specifications
| Cutter Diameter (mm) | 12.1 mm |
| Pitch | 1.5 |
| Size | M 14 |
| Thread Standard | MF |
| Applicable Material | Steel, Cast Iron, Aluminum, Titanium |
| Application | Full Profile |
| Type | GSF-Thread & Countersink |
| Length Group | 1.5 xD |
| Coolant Fed | Axial |
| Coating/Finish | Bright |
| Material | Carbide |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 16 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 100 mm |
| Flute Length (mm) | 21.8 mm |
| Flute Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
12.10mm
Shank Diameter (mm):
16.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
21.80mm
Thread Size:
M 14 x 1.5
Thread Standard:
MF
Number of Flutes:
4
Flute Direction:
Right Hand
Finish/Coating:
Bright
Tool Type:
SHUR-THREAD
Application:
Thread Milling
Overall Length (mm):
100.00mm
