Features:

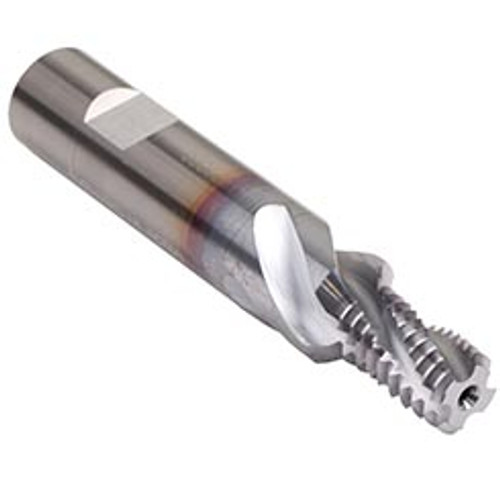

- Combination countersink & thread mill Coolant fed design
- Combine two operations into one tool Coolant fed for efficient chip evacuation
Product Specifications
| Cutter Diameter (mm) | 8.7 mm |
| Pitch | 1 |
| Size | M 10 |
| Thread Standard | MF |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Full Profile |
| Type | GSF - Thread & Countersink |
| Length Group | 1.5 xD |
| Coolant Fed | Axial |
| Finish/Coating | TICN |
| Material | Carbide |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 12 mm |
| Dimension Standards | DIN 13 |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 80 mm |
| Flute Length (mm) | 15.5 mm |
| Flute Spiral Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
8.70mm
Shank Diameter (mm):
12.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
15.50mm
Thread Size:
M 10 x 1
Thread Standard:
MF
Number of Flutes:
3
Flute Direction:
Right Hand
Finish/Coating:
TiCN
Tool Type:
SHUR-THREAD
Application:
Thread Milling
Overall Length (mm):
80.00mm
