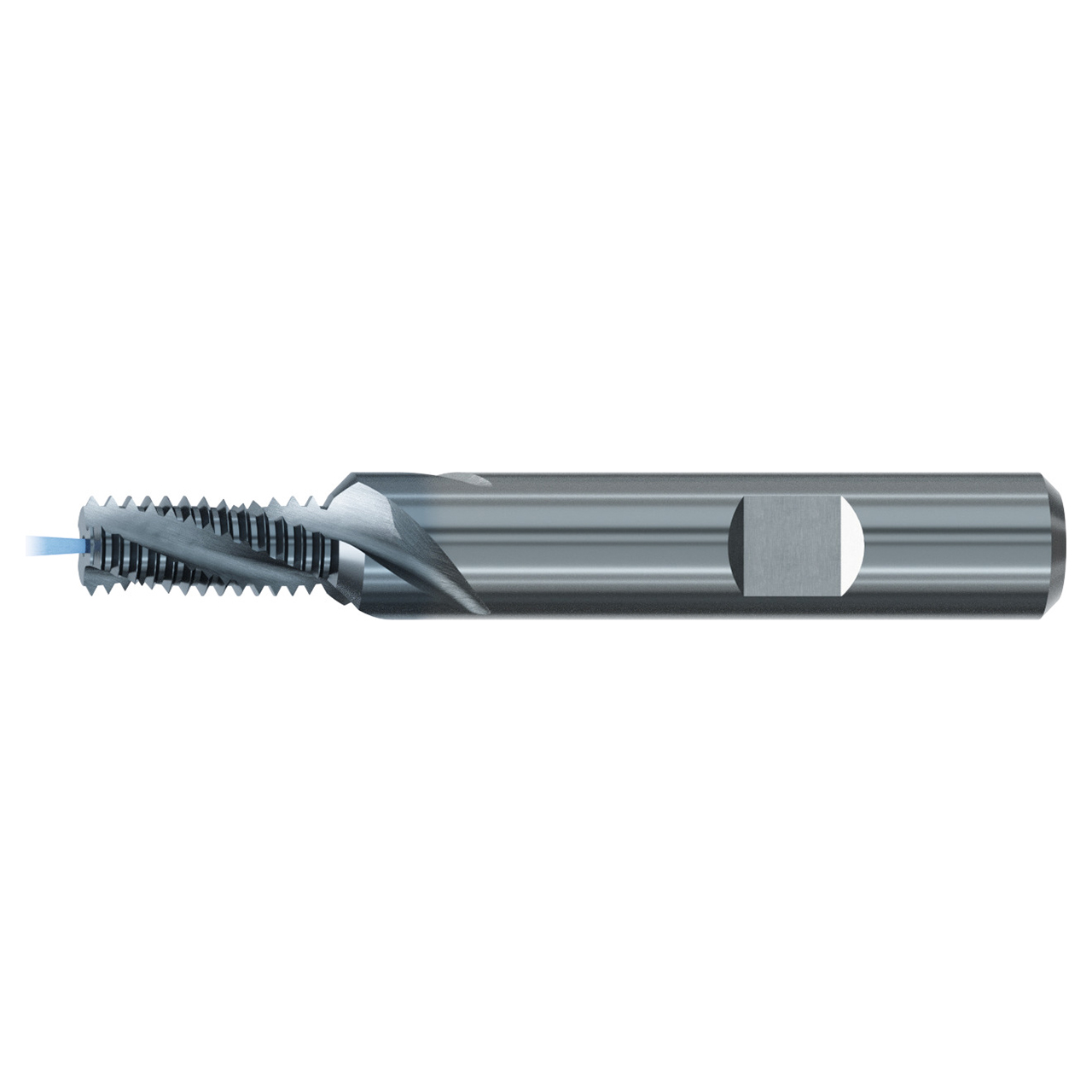

Features:
- Combination countersink & thread mill
- Axial coolant fed channel for enhanced chip removal rates
- This tool is for a specific pitch with corrected thread profile
- Pre-drilled hole is required
Product Specifications
| Manufacturer Part Number | GF322106.0277 |
| Thread Size | M 10x1.25 |
| Thread Diameter Size | M 10 |
| Thread Standard | MF |
| Thread Pitch (mm) | 1.25mm |
| Overall Length (mm) | 80.00mm |
| Flute Length (mm) | 15.70mm |
| Shank Tolerance | h6 |
| Tool Cylindrical - Shank Style | Weldon Flat - HB |
| Shank Standard | DIN 6535 |
| Flute Direction | Right Hand |
| Coolant Supply Property | Internal |
| Coolant Fed | Axial |
| Number of Flute | 3 |
| Flute Helix Angle (Degree) | 30 Degree |
| Cutting Edge Material | Carbide |
| Coating | TiCN |
| Tool Type | SHUR-THREAD™ |
| Application | Thread Milling |
| Product Type | Thread Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Shank Diameter (mm):
12.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
15.70mm
Thread Size:
M 10 x 1.25
Thread Standard:
MF
Number of Flutes:
3
Flute Direction:
Right Hand
Finish/Coating:
TiCN
Tool Type:
SHUR-THREAD
Application:
Thread Milling
Overall Length (mm):
80.00mm
interval quantity:
1
