Features:

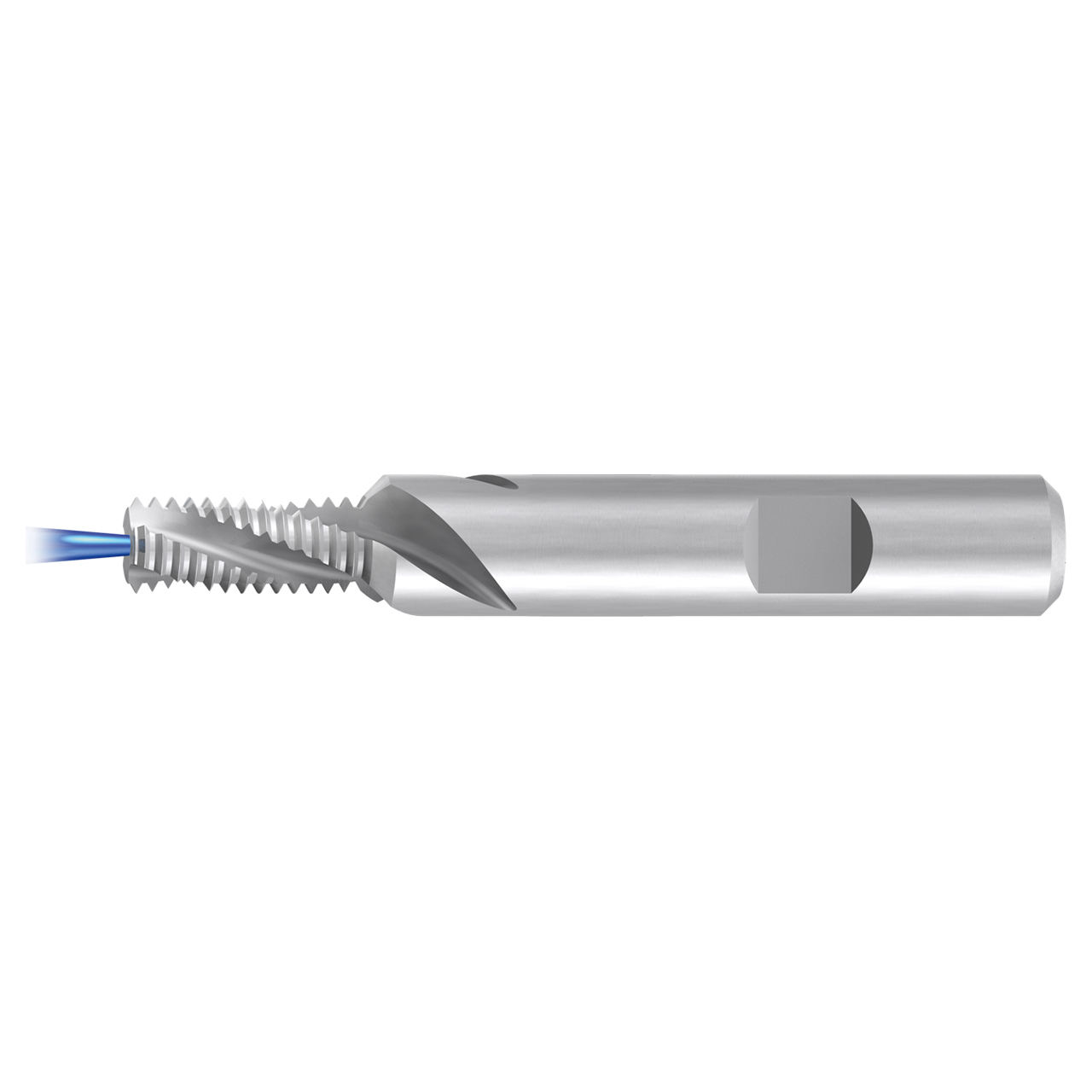

- Combination countersink & thread mill for aerospace material. Coolant fed design
- Combine two operations into one tool. Coolant fed for efficient chip evacuation
Product Specifications
| Cutter Diameter (mm) | 0.437" |
| Pitch | 20 |
| Size | 1/2" |
| Thread Standard | UNF |
| Applicable Material | Steel, Cast Iron, Aluminum, Titanium |
| Application | Full Profile |
| Type | GSF Aero-Thread & Countersink |
| Length Group | 2 x D |
| Coolant Fed | Axial |
| Coating/Finish | Bright |
| Material | Carbide |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 15 Degree |
| Shank Diameter (mm) | 14 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 3.543" |
| Flute Length (mm) | 1.028" |
| Flute Direction | Right Hand, Left Hand |
