Features:

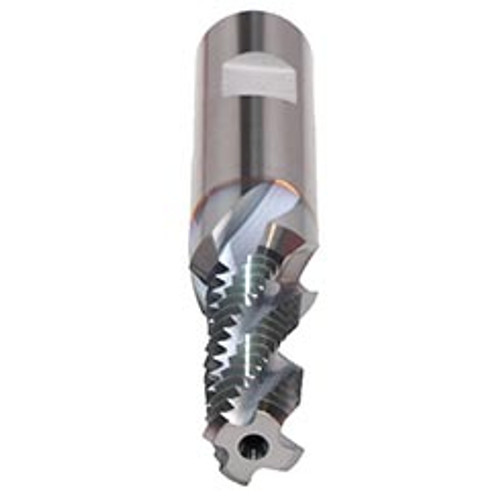

- Combination countersink & thread mill Coolant fed design
- Combine two operations into one tool Coolant fed for efficient chip evacuation
Product Specifications
| Cutter Diameter (mm) | 7.65 mm |
| Pitch | 16 |
| Size | 3/8" |
| Thread Standard | UNC |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Full Profile |
| Type | GSF- Thread & Countersink |
| Length Group | 2.5 x D |
| Coolant Fed | Axial |
| Finish/Coating | TICN |
| Material | Carbide |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 12 mm |
| Dimension Standards | ASME B1.1 |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 85 mm |
| Flute Length (mm) | 24.6 mm |
| Flute Spiral Direction | Right Hand, Left Hand |
