Features:

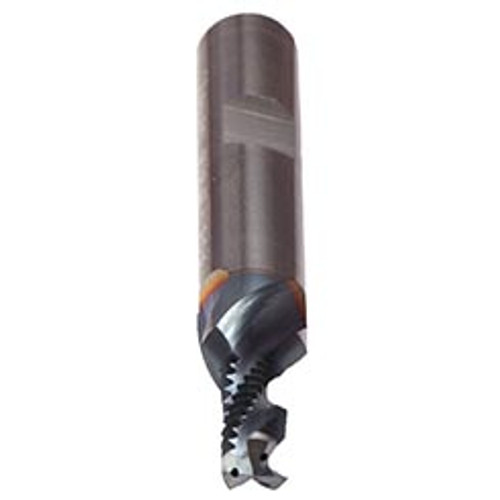

- Combination drill, countersink & thread mill Coolant fed design
- Combine three operations into one tool Coolant fed for efficient chip evacuation
Product Specifications
| Cutter Diameter (mm) | 8.4 mm |
| Pitch | 1.25 |
| Point Angle | 140 Degree |
| Size | M 10 |
| Thread Standard | MF |
| Applicable Material | Aluminum Alloys, Cast Iron |
| Application | Drill / Thread / Chamfer |
| Type | BGF-Z2 / Thriller |
| Length Group | 1.5 x D |
| Coolant Fed | Axial |
| Finish/Coating | TICN |
| Material | Carbide |
| Number of Flutes | 2 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 12 mm |
| Dimension Standards | DIN 13 |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 79 mm |
| Flute Length (mm) | 15.11 mm |
| Flute Spiral Direction | Right Hand, Left Hand |
