Features:

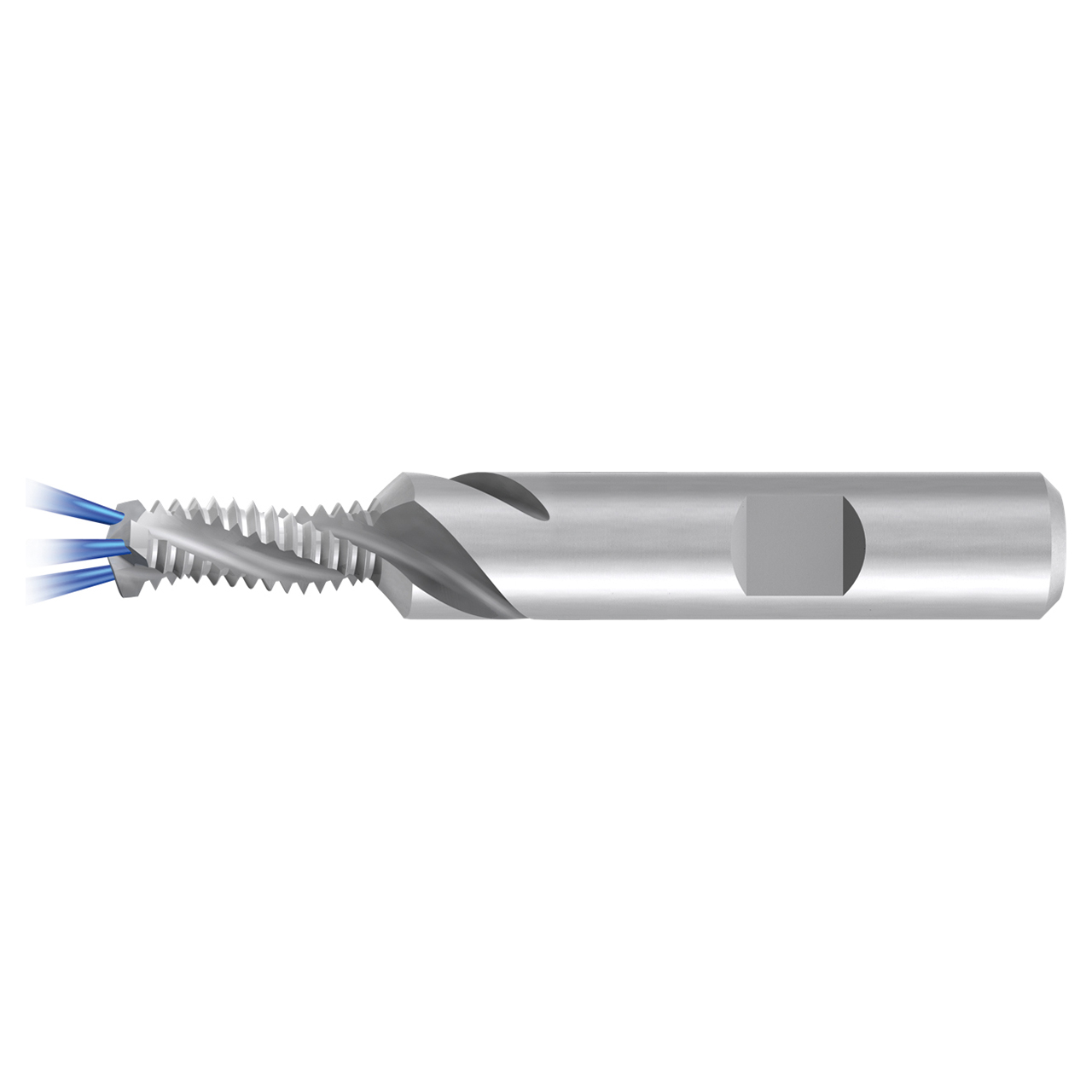

- Combination drill, countersink & thread mill. Coolant fed design
- Combine three operations into one tool. Coolant fed for efficient chip evacuation
Product Specifications
| Cutter Diameter (mm) | 4.8 mm |
| Pitch | 1 |
| Point Angle | 140 Degree |
| Size | M 6 |
| Thread Standard | M |
| Applicable Material | Aluminum Alloys, Cast Iron |
| Application | Drill/Thread/Chamfer |
| Type | BGF-Z3/Thriller |
| Length Group | 1.5 x D |
| Coolant Fed | Axial |
| Coating/Finish | Bright |
| Material | Carbide |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 8 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 62 mm |
| Flute Length (mm) | 9.1 mm |
| Flute Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
4.80mm
Shank Diameter (mm):
8.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
9.10mm
Point Angle:
140 Degree
Thread Size:
M 6 x 1
Thread Standard:
M
Number of Flutes:
3
Flute Direction:
Right Hand
Finish/Coating:
Bright
Tool Type:
THRILLER
Overall Length (mm):
62.00mm
