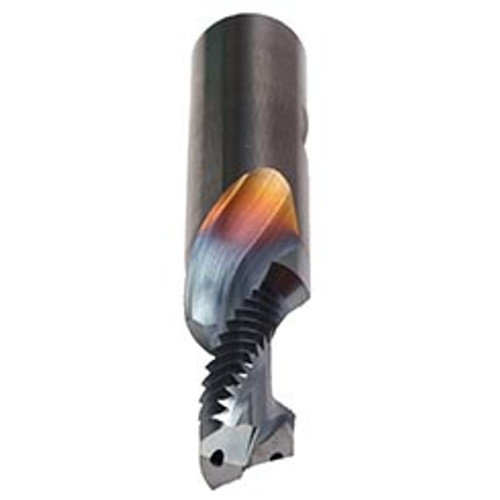

Features:
- For the production of internal threads
- 2-Flute for work in solid materials
Product Specifications
| Cutter Diameter (mm) | 5.26 mm |
| Pitch | 28 |
| Point Angle | 140 Degree |
| Size | 1/4" |
| Thread Standard | UNF |
| Applicable Material | Aluminum Alloys, Cast Iron |
| Application | Drill / Thread / Chamfer |
| Type | BGF-Z2 / Thriller |
| Length Group | 2 x D |
| Coolant Fed | Axial |
| Finish/Coating | TICN |
| Material | Carbide |
| Number of Flutes | 2 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 8 mm |
| Dimension Standards | ASME B1.1 |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 62 mm |
| Flute Length (mm) | 12.79 mm |
| Flute Spiral Direction | Right Hand, Left Hand |
