Features:

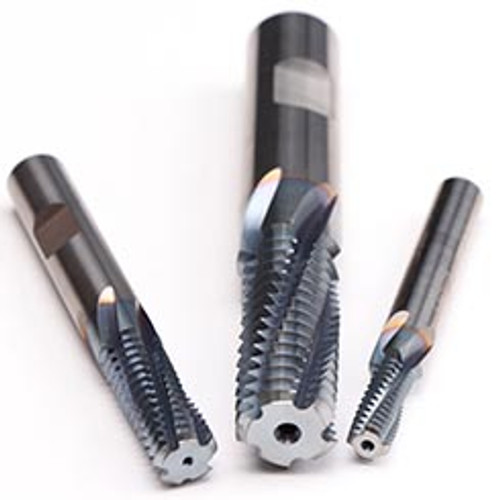

- For production of internal threads with an increased flute count
- Tool for different thread sizes and pitches with correct thread profile Optimized cutting geometry
Product Specifications
| Cutter Diameter (mm) | 6.7 mm |
| Pitch | 1 |
| Size | ≥M 8 |
| Thread Standard | MF |
| Applicable Material | Steel, Cast Iron, Aluminum, Titanium |
| Application | Full Profile |
| Type | GF-Vario-Z |
| Coolant Fed | Axial |
| Finish/Coating | Bright |
| Material | Carbide |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 15 Degree |
| Shank Diameter (mm) | 8 mm |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 63 mm |
| Flute Length (mm) | 16.4 mm |
| Flute Spiral Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (mm):
6.70mm
Shank Diameter (mm):
8.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
16.40mm
Thread Size:
?M8 x 1
Thread Standard:
MF
Number of Flutes:
4
Flute Direction:
Right Hand
Finish/Coating:
Bright
Tool Type:
VARIO Z
Application:
Thread Milling
Overall Length (mm):
63.00mm
interval quantity:
1
