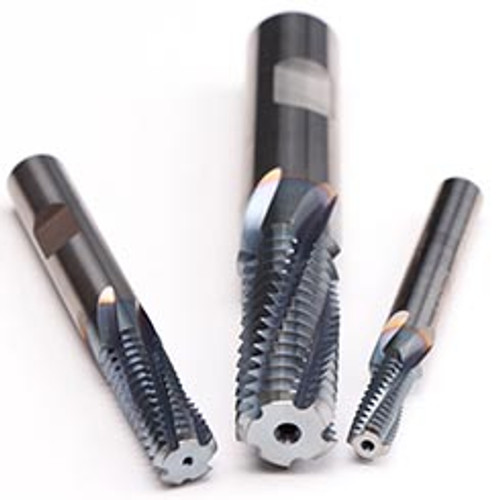

Emuge GFB35106.5007 | ? #10-24 Thread Mill - GF Vario-Z

$469.54 $460.15
(You save $9.39)
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.1450"
Shank Diameter (mm):
6.00mm
Cutting Edge Material:
Carbide
Thread Size:
≥#10-24
Thread Standard:
UNC
Threads per Inch (TPI):
24 TPI
Number of Flutes:
4
Flute Direction:
Right Hand
Finish/Coating:
TiCN
Tool Type:
VARIO Z
Application:
Thread Milling
Overall Length (Decimal Inch):
2.1600"
interval quantity:
1
SKU:
23143655
UPC:
Weight:
0.04 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Optimized cutting geometry for production of internal threads with an increased flute count
  • Tool for different thread sizes but one pitch only Increased flute count for reduced cutting pressure

Product Specifications
Cutter Diameter (Inch)0.145"
Pitch24
Size ≥ #10
Thread StandardUNC
Applicable MaterialSteel, Stainless Steel, Cast Iron, Aluminum, Titanium
ApplicationFull Profile
TypeGF-Vario-Z
Length GroupStandard
Coolant FedAxial
Finish/CoatingTICN
MaterialCarbide
Number of Flutes4
Helix Angle (Degrees)15 Degree
Shank Diameter (mm)6 mm
Dimension StandardsASME B1.1
Shank Toleranceh6
Shank StyleHB
Overall Length (Inch)2.16"
Flute Spiral DirectionRight Hand, Left Hand
