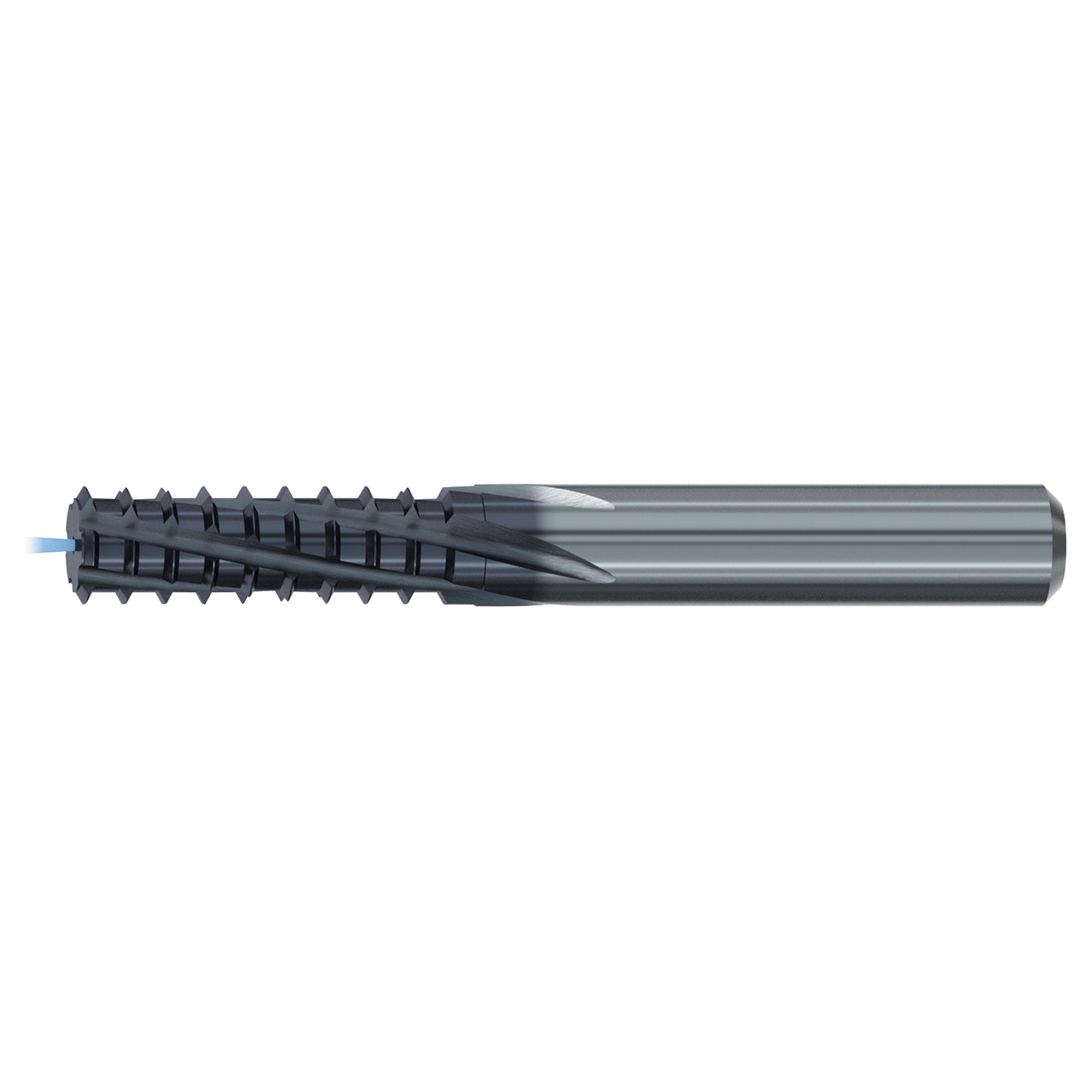

Emuge GFB4573C.5013 | 13 Thread Per Inch x 10.40mm Diameter x 93.00mm OAL 15 Degree Helix Angle 5 Flute TIALN-86 Coated Thread Mill

$628.02 $615.46
(You save $12.56)
Brand:
Emuge
Cutting Diameter (mm):
10.40mm
Shank Diameter (mm):
12.00mm
Cutting Edge Material:
Carbide
Flute Length (mm):
32.20mm
Thread Size:
?1/2 -13
Thread Standard:
UNC
Threads per Inch (TPI):
13 TPI
Number of Flutes:
5
Flute Direction:
Right Hand
Finish/Coating:
TiAlN-86
Tool Type:
VARIO-Skip Tooth
Application:
Thread Milling
Overall Length (mm):
93.00mm
interval quantity:
1
SKU:
17987216
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Emuge GFB4573C.5013 | 13 Thread Per Inch x 10.40mm Diameter x 93.00mm OAL 15 Degree Helix Angle 5 Flute TIALN-86 Coated Thread Mill

Related Products

Features:

  • Alternating tooth rows reduce axial force
  • Longer tool life when compared to traditional flute designs
  • Designed to reduce cutting force on internal threads while also providing the ability to remove the last incomplete thread profile
  • Designed to reduce cutting force on internal threads while also providing the ability to remove the last incomplete thread profile

Product Specifications
Manufacturer Part NumberGFB4573C.5013
Cutting Diameter (mm)10.40mm
Thread Size≥1/2 -13
Thread Diameter Size≥1/2
Thread StandardUNC
Thread per Inch (TPI)13 TPI
Overall Length (mm)93.00mm
Flute Length (mm)32.20mm
Dimensional StandardsASME B1.1
Shank Toleranceh6
Tool Cylindrical - Shank StyleCylindrical - HA
Shank StandardDIN 6535
Flute DirectionRight Hand
Group Length2.5xD
Coolant Supply PropertyInternal
Coolant FedAxial
Number of Flute5
Flute Helix Angle (Degree)15 Degree
Cutting Edge MaterialCarbide
CoatingTIALN-86
Tool TypeVARIO-Skip Tooth
ApplicationThread Milling
Product TypeThread Mill
