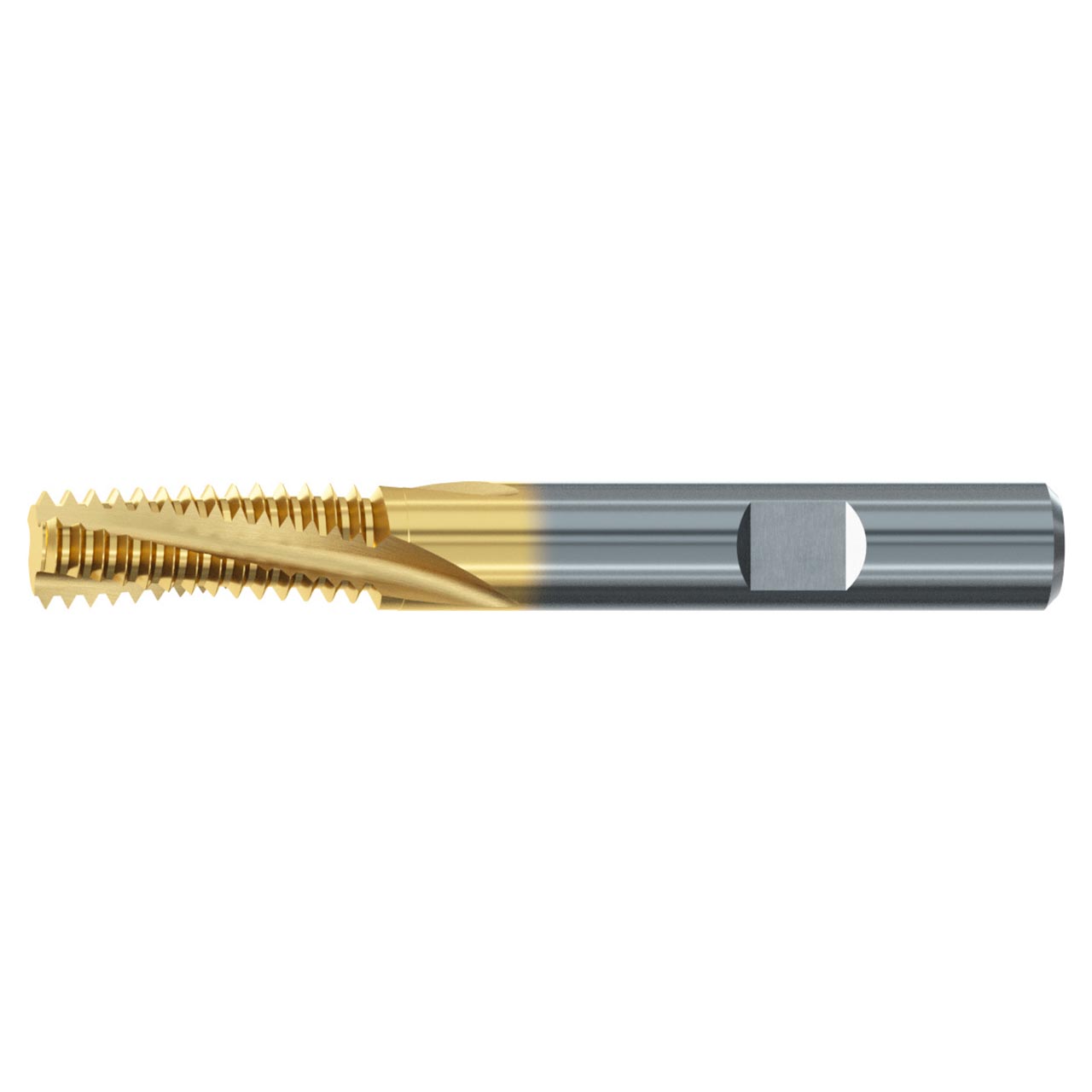

Features:
- For economical production of internal threads in a wide range of materials
- Optimized cutting geometry that works well in a job shop enviroment with multiple materials
Product Specifications
| Cutter Diameter (mm) | 0.621" |
| Pitch | 9 |
| Size | 7/8" |
| Thread Standard | UNC |
| Applicable Material | Universal |
| Application | Full Profile |
| Type | MULTI-THREAD MILL |
| Length Group | 2 x D |
| Coolant Fed | No |
| Coating/Finish | TIN-T21 |
| Material | Carbide |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 15 Degree |
| Shank Diameter (mm) | 5/8" |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (mm) | 4.25" |
| Flute Length (mm) | 1.829" |
| Flute Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
