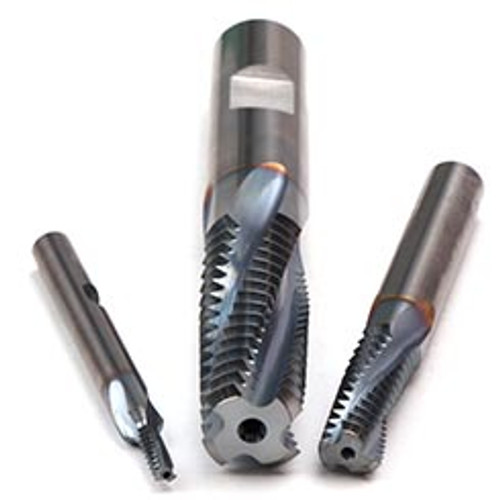

Features:
- Full profile cutter for the production of internal threads and external threads
- Tool for different thread sizes but one pitch only with correct thread profile Coolant fed with optimized cutting geometry for maxiumum material removal
Product Specifications
| Cutter Diameter (Inch) | 0.185" |
| Pitch | 20 |
| Size | 1/4" |
| Thread Standard | UNC |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Full Profile |
| Type | GFI / SHUR-THREAD |
| Length Group | 2 x D |
| Coolant Fed | Axial |
| Finish/Coating | TICN |
| Material | Carbide |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 15 Degree |
| Shank Diameter (Inch) | 1/4" |
| Dimension Standards | ASME B1.1 |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (Inch) | 2 1/2" |
| Flute Length (Inch) | 0.524" |
| Flute Spiral Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.1850"
Shank Diameter (Inch):
1/4"
Cutting Edge Material:
Carbide
Flute Length (Decimal Inch):
0.5240"
Thread Standard:
UNC
Threads per Inch (TPI):
20 TPI
Number of Flutes:
3
Flute Direction:
Right Hand
Finish/Coating:
TiCN
Tool Type:
SHUR-THREAD
Application:
Thread Milling
Overall Length (Inch):
2-1/2"
