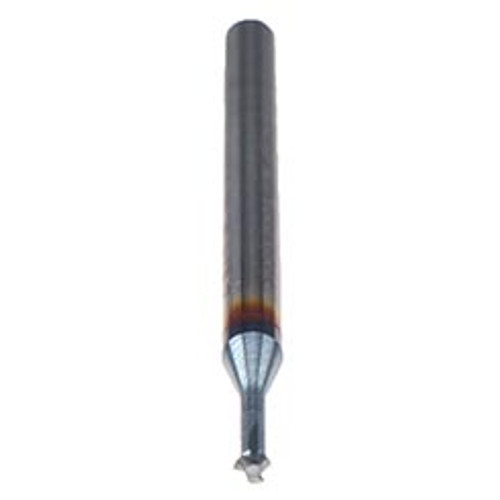

Emuge GFS13706.5033 | #0 - 80 - Thread Mill - ZGFI -Single Profile - 2xD

$139.25 $136.47
(You save $2.78)
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.0450"
Shank Diameter (Inch):
1/8"
Cutting Edge Material:
Carbide
Flute Length (Decimal Inch):
0.1250"
Thread Size:
#0-80
Threads per Inch (TPI):
80 TPI
Number of Flutes:
1
Flute Direction:
Right Hand
Finish/Coating:
TiCN
Tool Type:
THREADS-ALL
Application:
Thread Milling
Overall Length (Decimal Inch):
1.6250"
interval quantity:
1
SKU:
15043727
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
GFS13706.5033-C

Related Products

Features:

  • Solid carbide single plane thread mill for internal threads in a wide range of materials
  • Different thread sizes and pitches can be produced with a single tool TICN coating for added wear resistance

Product Specifications
Cutter Diameter (Inch)0.045"
Pitch80
Size#0
Thread StandardUNC/UNF/M
Applicable MaterialSteel, Stainless Steel, Cast Iron, Aluminum, Titanium
ApplicationSingle Plane
TypeZGF-I /THREADS-ALL
Length Group2 x D
Coolant FedNo
Finish/CoatingTiCN
MaterialCarbide
Number of Flutes1
Helix Angle (Degrees)0 Degree
Shank Diameter (Inch)1/8"
Dimension StandardsASME B1.1
Shank Toleranceh6
Shank StyleHA
Overall Length (Inch)1.625"
Flute Length (Inch)0.125"
Flute Spiral DirectionRight Hand, Left Hand
