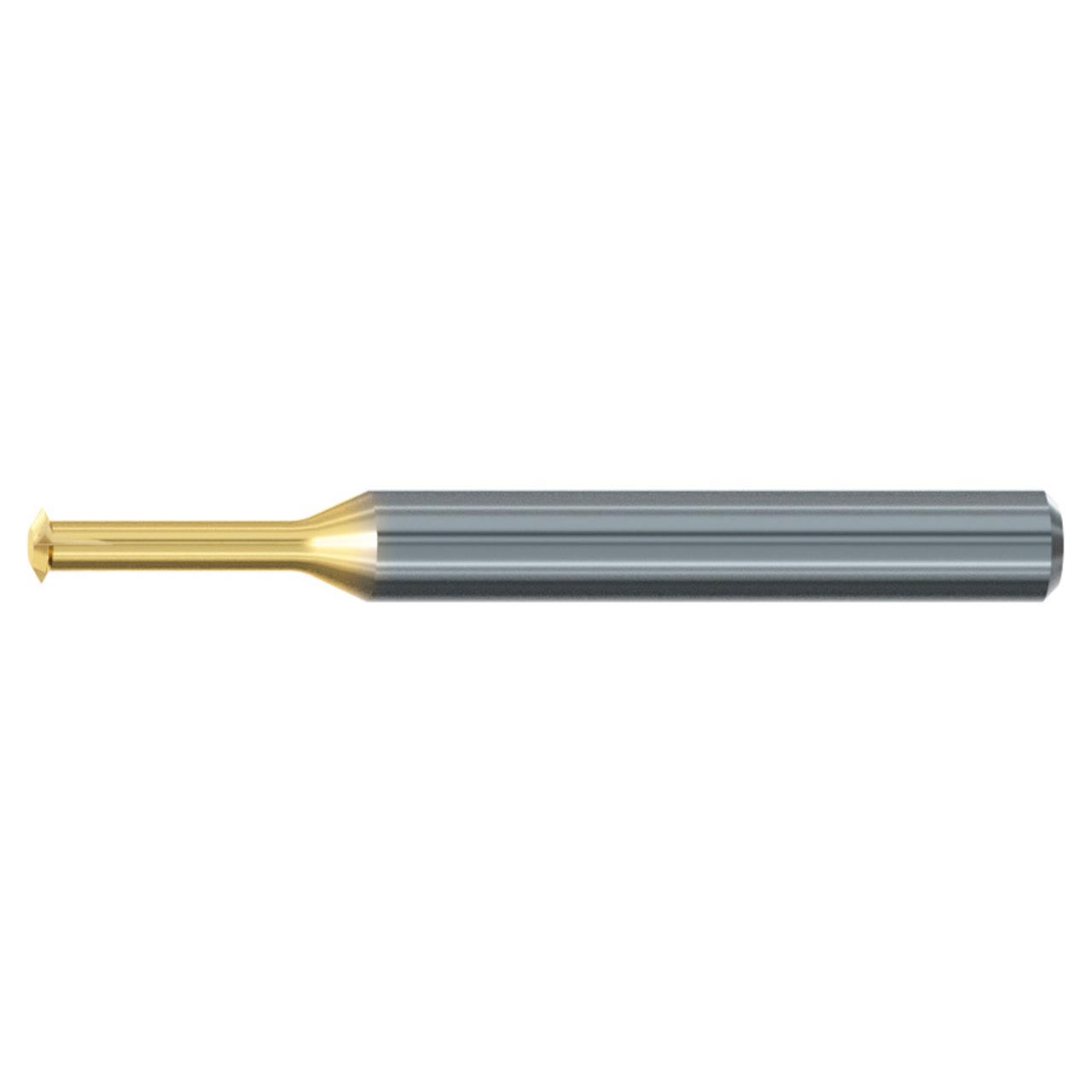

Emuge GFS23705.5000 | #1- (64 or 72) UNC/UNF Thread Mill - MULTI Style -2xD

$108.55 $100.95
(You save $7.60)
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.0560"
Shank Diameter (Inch):
1/8"
Cutting Edge Material:
Carbide
Flute Length (Decimal Inch):
0.1460"
Thread Size:
#1-64, 72
Threads per Inch (TPI):
64, 72
Number of Flutes:
3
Flute Direction:
Right Hand
Finish/Coating:
TiN-T21
Tool Type:
MULTI-THREAD MILL
Application:
Thread Milling
Overall Length (Inch):
1-5/8"
interval quantity:
1
SKU:
15046427
UPC:
Weight:
0.02 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Emuge GFS23705.5000 | #1- (64 or 72) UNC/UNF Thread Mill - MULTI Style -2xD

Related Products

Features:

  • Solid carbide circular thread mill for a wide range of materials
  • Optimized cutting geometry that works well in a job shop enviroment with multiple materials

Product Specifications
Cutter Diameter (mm)0.056"
Pitch64, 72
Size1
Thread StandardUNC/UNF/M
Applicable MaterialUniversal
ApplicationSingle Plane
TypeMULTI-THREAD MILL
Length Group2 x D
Coolant FedNo
Coating/FinishTIN-T21
MaterialCarbide
Number of Flutes3
Helix Angle (Degrees)0 Degree
Shank Diameter (mm)1/8"
Shank Toleranceh6
Shank StyleHA
Overall Length (mm)1 5/8"
Flute Length (mm)0.146"
Flute DirectionRight Hand, Left Hand
