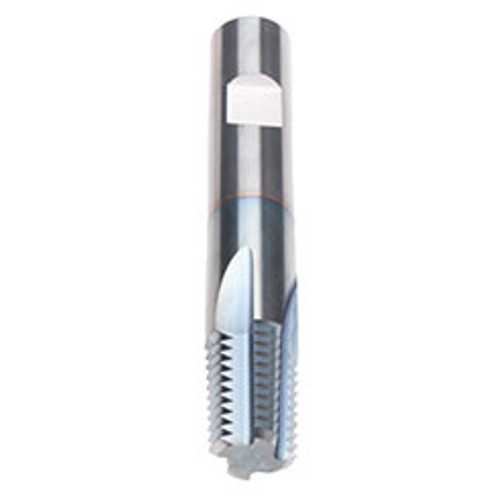

Features:
- Solid carbide, full profile thread mill for a wide range of materials
- Premium sub-micro grain carbide tool for a wide range of materials TICN coating for added wear resistance
Product Specifications
| Cutter Diameter (Inch) | 0.307" |
| Pitch | 18 |
| Size | 1/4 to 3/8 |
| Thread Standard | NPT |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Taper Pipe-Full Profile |
| Type | GFI-ECO Pipe Thread |
| Coolant Fed | No |
| Finish/Coating | TICN |
| Material | Carbide |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 0 Degree |
| Shank Diameter (Inch) | 5/16" |
| Dimension Standards | ANSI/ASME B1.20.1 |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (Inch) | 2 1/2" |
| Flute Length (Inch) | 0.58" |
| Flute Spiral Direction | Right Hand, Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.3070"
Shank Diameter (Inch):
5/16"
Cutting Edge Material:
Carbide
Flute Length (Decimal Inch):
0.5800"
Thread Size:
1/4 to 3/8-18
Thread Standard:
NPT
Threads per Inch (TPI):
18 TPI
Number of Flutes:
3
Flute Direction:
Right Hand
Finish/Coating:
TiCN
Tool Type:
SHUR-THREAD
Application:
Thread Milling
Overall Length (Inch):
2-1/2"
