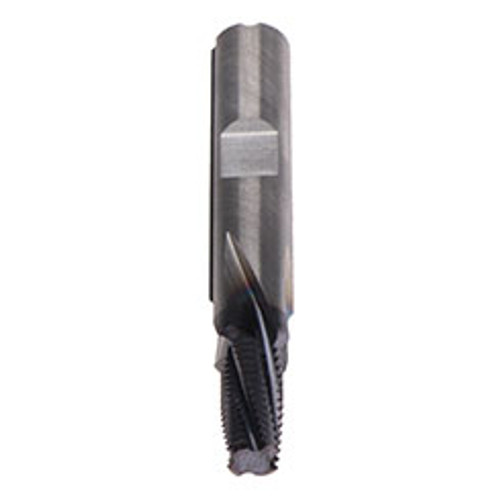

Features:
- Fourteen tooth profile to produce API-LP internal threads
- Innovative left hand flute geometry reduces vibration External coolant channels improve tool life and thread quality
Product Specifications
| Cutter Diameter (Inch) | 0.400" |
| Pitch | 18 |
| Size | 1/4" or 3/8" |
| Thread Standard | NPT (API-LP) |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Aluminum, Titanium |
| Application | Taper Pipe-Full Profile |
| Type | GFI-(API-LP) Pipe Thread |
| Length Group | Long |
| Coolant Fed | No |
| Finish/Coating | TICN |
| Material | Carbide |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 15 Degree |
| Shank Diameter (Inch) | 1/2" |
| Dimension Standards | ANSI/ASME B1.20.1 |
| Shank Tolerance | h6 |
| Shank Style | HB |
| Overall Length (Inch) | 3.25" |
| Flute Length (Inch) | 0.80" |
| Flute Spiral Direction | Left Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Emuge
Cutting Diameter (Decimal Inch):
0.4000"
Shank Diameter (Inch):
1/2"
Cutting Edge Material:
Carbide
Flute Length (Decimal Inch):
0.8000"
Threads per Inch (TPI):
18 TPI
Number of Flutes:
4
Flute Direction:
Left Hand
Finish/Coating:
TiCN
Tool Type:
SHUR-THREAD
Application:
Thread Milling
Overall Length (Decimal Inch):
3.2500"
interval quantity:
1
