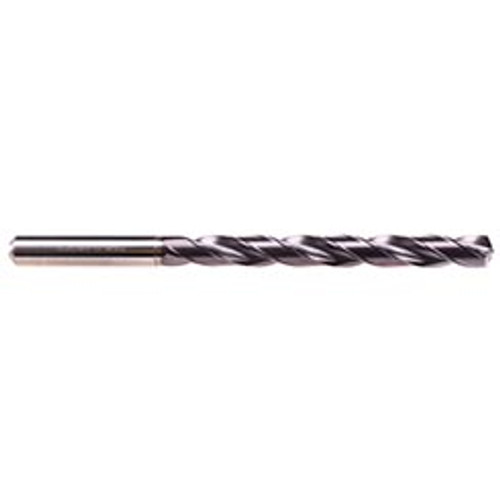

Features:
- High penetration rate carbide drill with double margin flute design. Unique web construction. Sub-micro grain carbide
- Creates short consistent chip forms which enables higher penetration rates and accurate hole location
Product Specifications
| Decimal Size (Inch) | 0.1319 |
| Pitch | 12-24 (1-2 mm) |
| Point Angle | 140 Degree |
| Size | 3.35 mm |
| Thread Standard | UN, M, MF |
| Applicable Material | Steel, Alloyed Steel, Nickel Alloys, Cast Iron |
| Application | High Penetration Rate Drill |
| Type | EF Drill |
| Length Group | 5 x D |
| Coolant Fed | Yes |
| Finish/Coating | TiAlN-TA14 |
| Material | Carbide |
| Flutes | 2 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 6 mm |
| Shank Tolerance | h6 |
| Shank Style | HA |
| Overall Length (mm) | 66 mm |
| Flute Length (mm) | 28 mm |
| Flute Spiral Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
