Features:

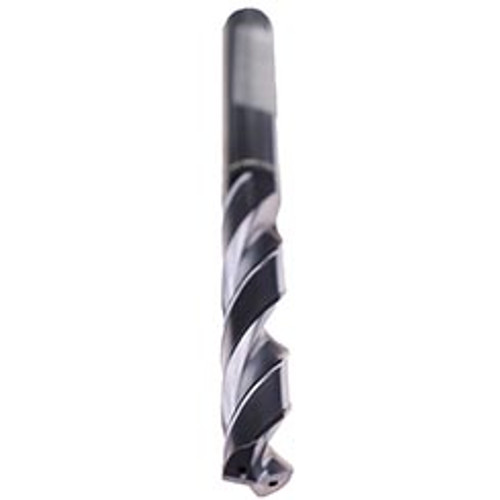

- High penetration rate carbide drill for stainless steel and titanium alloys. Unique web construction. Sub-micro grain carbide
- Creates short consistent chip forms which enables higher penetration rates and accurate hole location
Product Specifications
| Decimal Size (Inch) | 0.6142 |
| Point Angle | 140 Degree |
| Size | 15.6 mm |
| Applicable Material | Stainless Steel & Titanium Alloys |
| Application | High Penetration Rate Drill |
| Type | EF-VA Drill |
| Length Group | 5 x D |
| Coolant Fed | Yes |
| Finish/Coating | AlCrN-T37 |
| Material | Carbide |
| Flutes | 2 |
| Helix Angle (Degrees) | 30 Degree |
| Shank Diameter (mm) | 16 mm |
| Shank Tolerance | h6 |
| Shank Style | HE |
| Overall Length (mm) | 133 mm |
| Flute Length (mm) | 83 mm |
| Flute Spiral Direction | Right Hand |
