Features

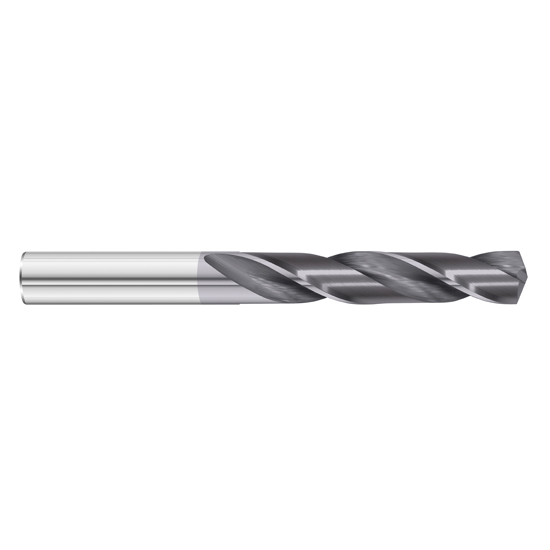

- The 1500 Notched Cam Point is a 2-flute, general purpose drill designed to withstand a variety of materials, including titanium, hardened steels, stainless steels, cast iron, and brass & copper
- Its robust notched cam point and 30 Degree spiral allows for higher feed rates and increased tool life
- The 1500 Notched Cam Point is stocked uncoated, and with FC-7 and TiAlN coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.1719" |
| Cutting Diameter (mm) | 4.37mm |
| Cutting Diameter (Inch) | 11/64" |
| Cutting Flute Length (Decimal Inch) | 1.6250" |
| Cutting Flute Length (mm) | 41.28mm |
| Cutting Flute Length (Inch) | 1-5/8" |
| Shank Diameter (Decimal Inch) | 0.1719" |
| Shank Diameter (mm) | 4.37mm |
| Shank Diameter (Inch) | 11/64" |
| Overall Length (Decimal Inch) | 2.7500" |
| Overall Length (mm) | 69.85mm |
| Overall Length (Inch) | 2-3/4" |
| Coating/Finish | FC7 |
| Metric/Inch | Inch |
| Number of Flutes | 2 |
| Helix Angle (Degrees) | 30 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Notched |
| End Type Character Designation | N |
| Point Include Angle | 135 |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Standard |
| Length Designator | 7xD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Drill Bit Size (Inch):
11/64"
Drill Bit Size (Decimal Inch):
0.1719"
Drill Bit Size (mm):
4.37mm
Drill Point Angle:
135°
Material:
Solid Carbide
Finish/Coating:
FC7
Flute Type:
Spiral
Cutting Direction:
Right Hand
Shank Type:
Straight
Through Coolant:
Non Through Coolant
Ships:
From Partner Facility
