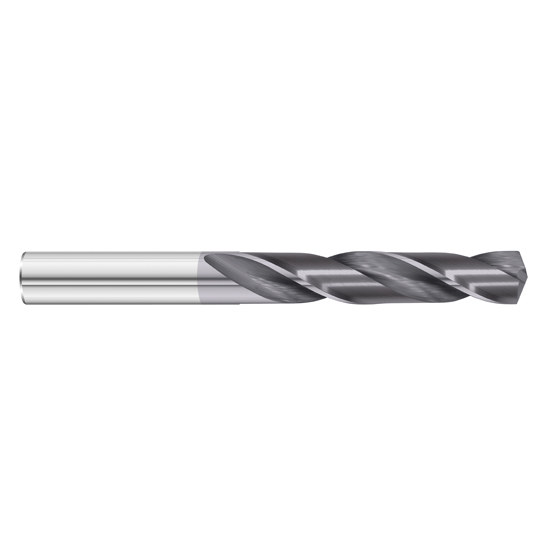

Fullerton Tool 13136 | Letter Y Solid Carbide FC7 Jobbers Length Drill

$107.62 $105.47
(You save $2.15)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Drill Bit Size (Decimal Inch):
0.4040"
Drill Bit Size (mm):
10.26mm
Drill Bit Size (Letter):
Y
Drill Point Angle:
135 Degree
Material:
Solid Carbide
Finish/Coating:
FC7
Flute Type:
Spiral
Cutting Direction:
Right Hand
Shank Type:
Straight
Through Coolant:
Non Through Coolant
Ships:
From Partner Facility
interval quantity:
1
SKU:
10000941
UPC:
Weight:
0.08 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Fullerton Tool 13136 | Letter Y Solid Carbide FC7 Jobbers Length Drill

Related Products

Features

  • The 1500 Notched Cam Point is a 2-flute, general purpose drill designed to withstand a variety of materials, including titanium, hardened steels, stainless steels, cast iron, and brass & copper
  • Its robust notched cam point and 30 Degree spiral allows for higher feed rates and increased tool life
  • The 1500 Notched Cam Point is stocked uncoated, and with FC-7 and TiAlN coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.4040"
Cutting Diameter (mm) 10.26mm
Diameter (Letter) Y
Cutting Flute Length (Decimal Inch) 2.8750"
Cutting Flute Length (mm) 73.03mm
Cutting Flute Length (Inch) 2-7/8"
Shank Diameter (Decimal Inch) 0.4040"
Shank Diameter (mm) 10.26mm
Overall Length (Decimal Inch) 4.5000"
Overall Length (mm) 114.30mm
Overall Length (Inch) 4-1/2"
Coating/Finish FC7
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Notched
End Type Character Designation N
Point Include Angle 135
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator 7xD
