Features

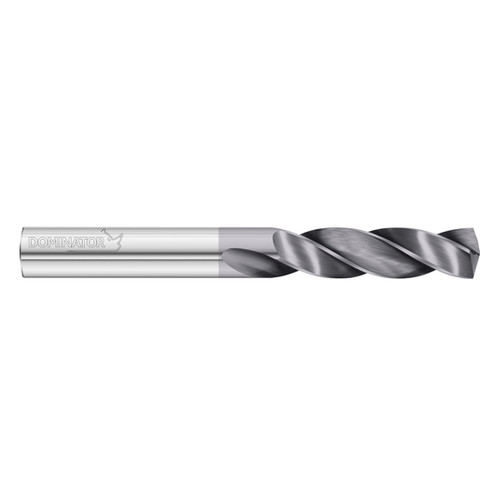

- The 1565 AlumaDrill is a 3-flute, high performance drill designed for high-speed drilling in titanium, graphite, brass & copper, high si aluminum, low si aluminum, composites, plastics, and wood
- It features enhanced chip evacuation in high speed drilling applications and its unique radial grinds allow self-centering and increases aggressiveness in softer materials
- The 1565 AlumaDrill is stocked uncoated
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.3680" |
| Cutting Diameter (mm) | 9.35mm |
| Diameter (Letter) | U |
| Cutting Flute Length (Decimal Inch) | 2.5000" |
| Cutting Flute Length (mm) | 63.50mm |
| Cutting Flute Length (Inch) | 2-1/2" |
| Shank Diameter (Decimal Inch) | 0.3680" |
| Shank Diameter (mm) | 9.35mm |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Overall Length (Inch) | 4" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 30 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Hi-Performance |
| End Type Character Designation | HP |
| Point Include Angle | 130 |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Standard |
| Length Designator | 5xD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Drill Bit Size (Decimal Inch):
0.3680"
Drill Bit Size (mm):
9.35mm
Drill Bit Size (Letter):
U
Drill Point Angle:
130°
Material:
Solid Carbide
Finish/Coating:
Uncoated
Flute Type:
Parabolic
Cutting Direction:
Right Hand
Shank Type:
Straight
Through Coolant:
Non Through Coolant
Ships:
From Partner Facility
