Features

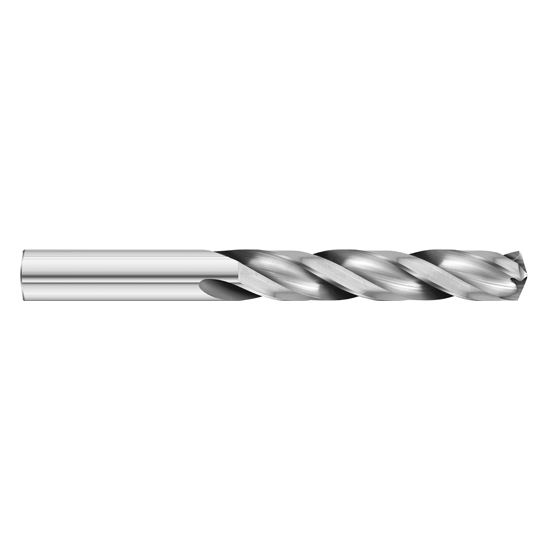

- The 1540 Thinned Point is a 3-flute, general purpose drill designed to produce straight round holes in cast iron, hardened steels, stainless steels, steels, and wood
- The 1540 Thinned Point is stocked uncoated
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.2344" |
| Cutting Diameter (mm) | 5.95mm |
| Cutting Diameter (Inch) | 15/64" |
| Cutting Flute Length (Decimal Inch) | 2.0000" |
| Cutting Flute Length (mm) | 50.80mm |
| Cutting Flute Length (Inch) | 2" |
| Shank Diameter (Decimal Inch) | 0.2344" |
| Shank Diameter (mm) | 5.95mm |
| Shank Diameter (Inch) | 15/64" |
| Overall Length (Decimal Inch) | 3.2500" |
| Overall Length (mm) | 82.55mm |
| Overall Length (Inch) | 3-1/4" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 30 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Thinned |
| End Type Character Designation | T |
| Point Include Angle | 150 |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Standard |
| Length Designator | 7xD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Drill Bit Size (Inch):
15/64"
Drill Bit Size (Decimal Inch):
0.2344"
Drill Bit Size (mm):
5.95mm
Drill Point Angle:
150 Degree
Material:
Solid Carbide
Finish/Coating:
Uncoated
Flute Type:
Spiral
Cutting Direction:
Right Hand
Shank Type:
Straight
Through Coolant:
Non Through Coolant
